$2,213.00
GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt - AZVS15DMXWA
GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt
Model: AZVS15DMXWA
GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt
Model: AZVS15DMXWA
$2,213.00
Color : Grey White
$2,213.00
Key Features
Variable Speed Inverter Technology (4K - 15K BTU)
R454B - Most environmentally friendly refrigerant on the market
Heat pump down to 0°F
Makeup air with adjustable cfm
Merv13 filter option

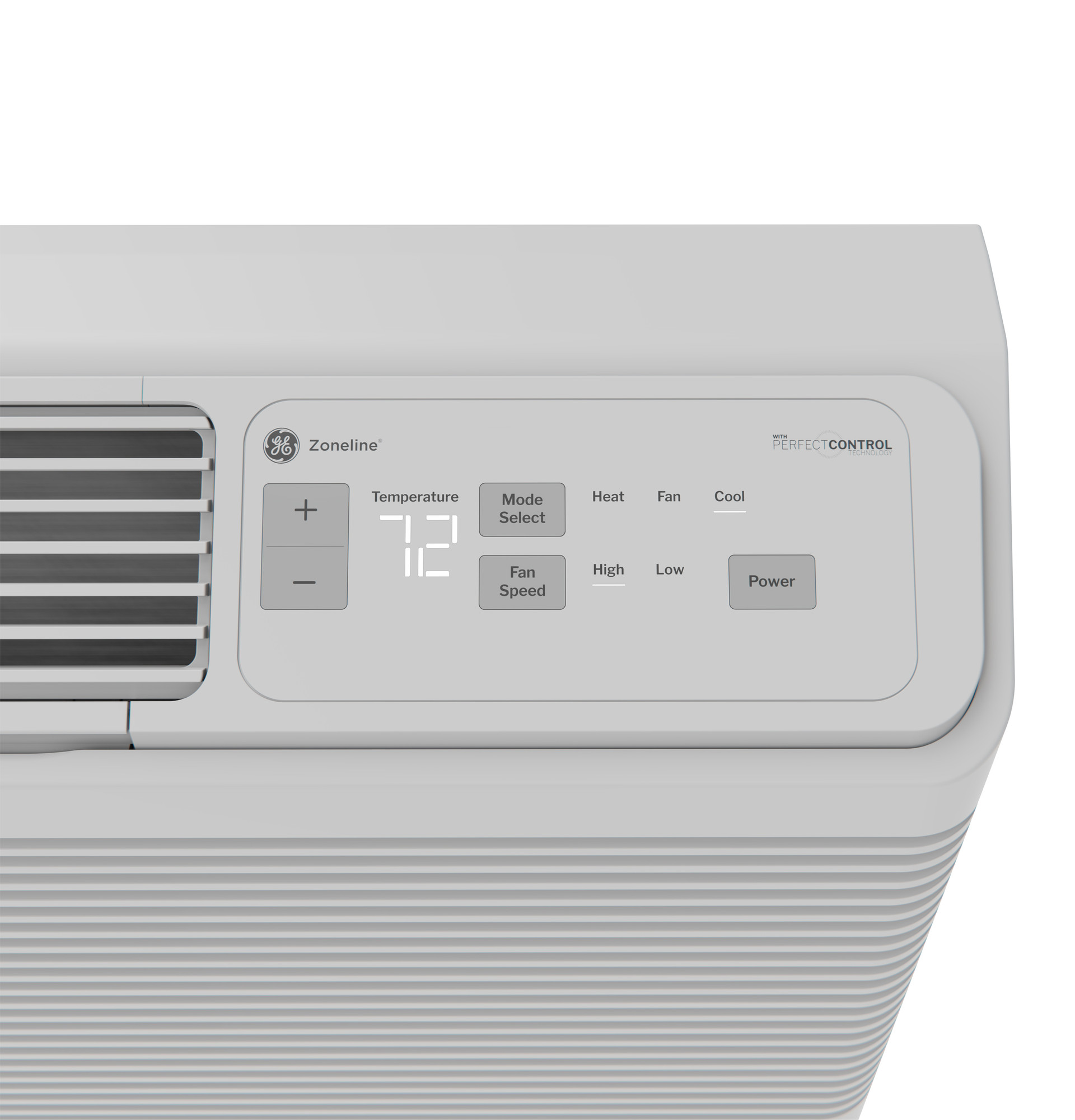

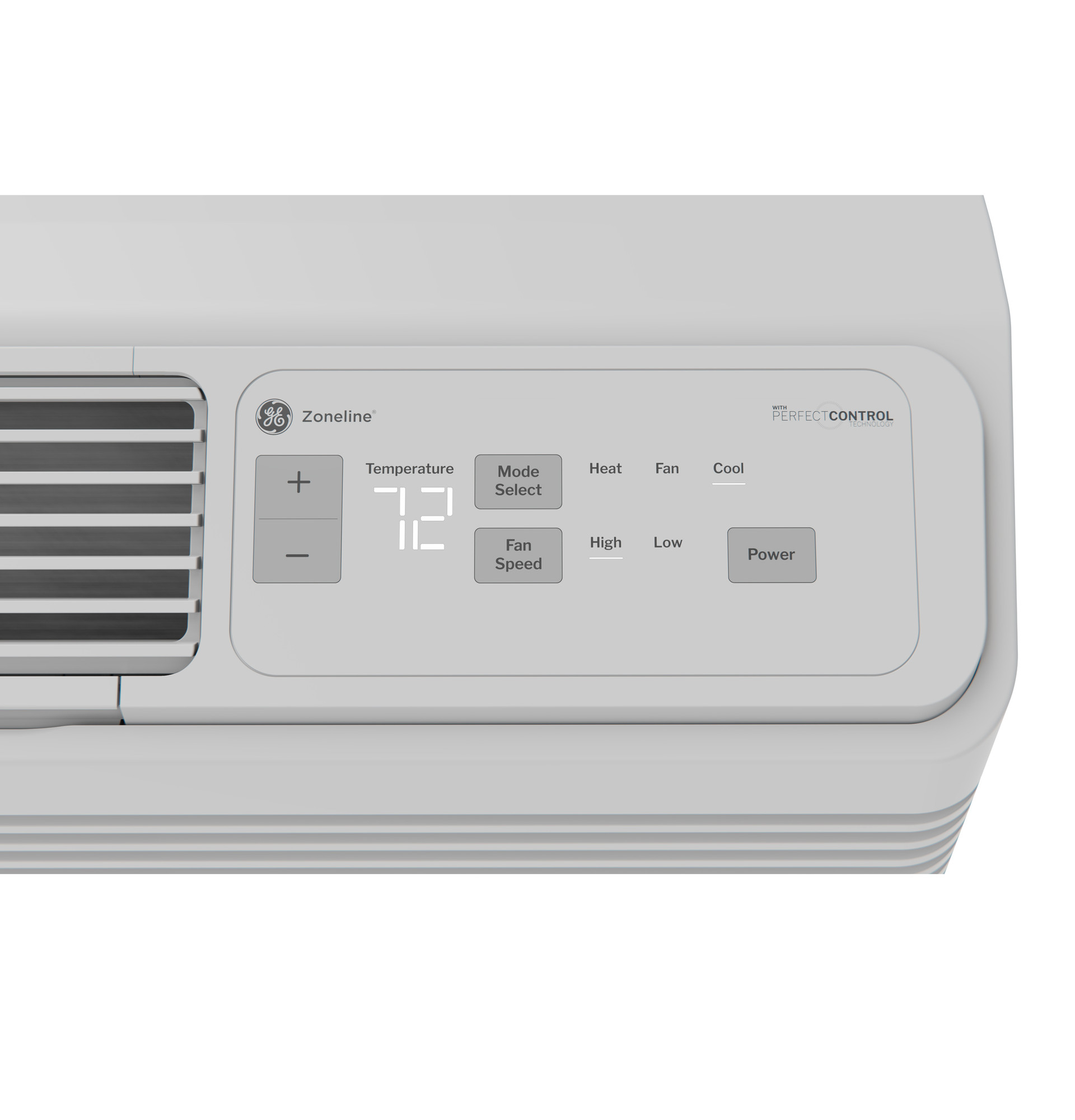

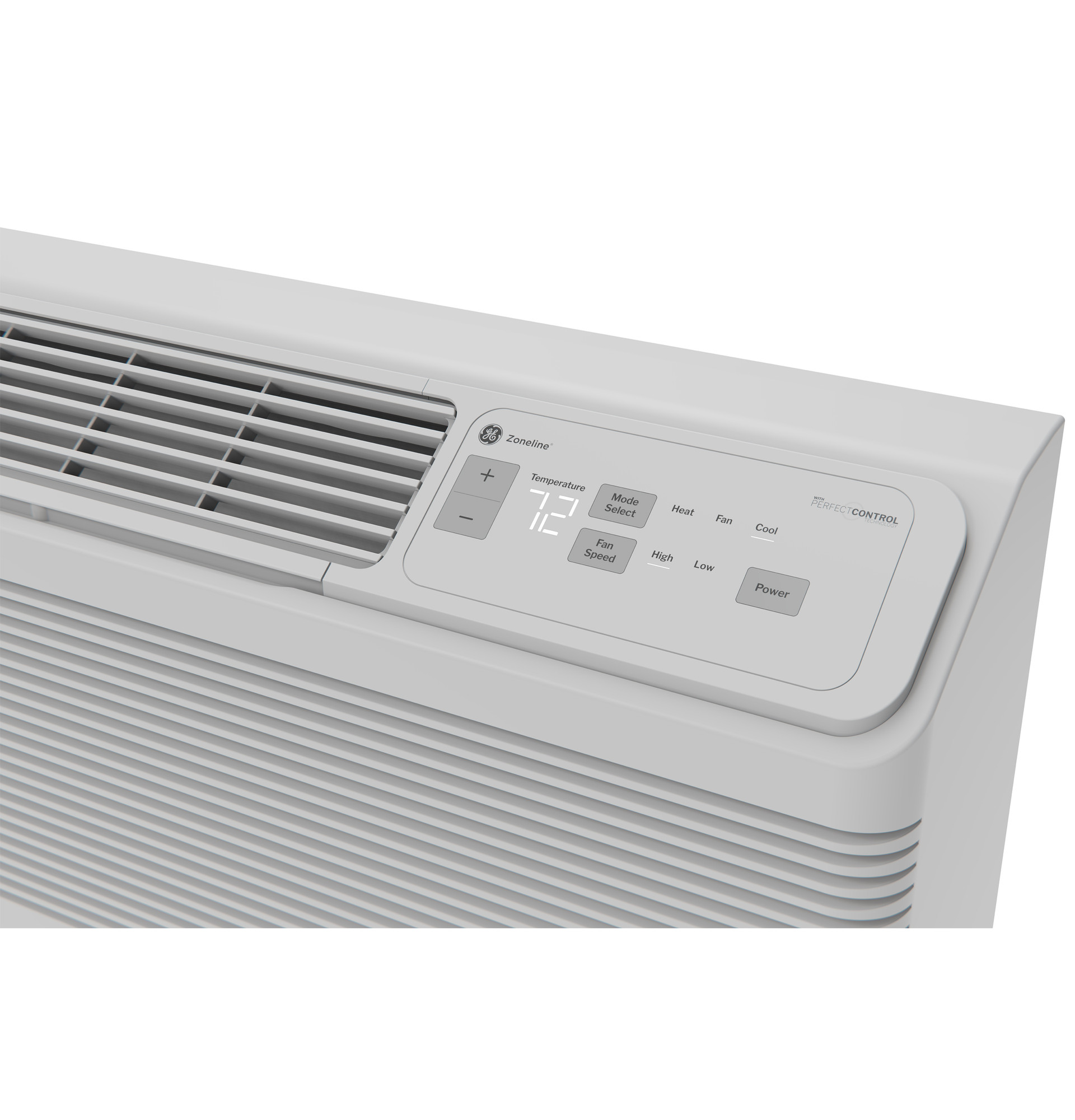

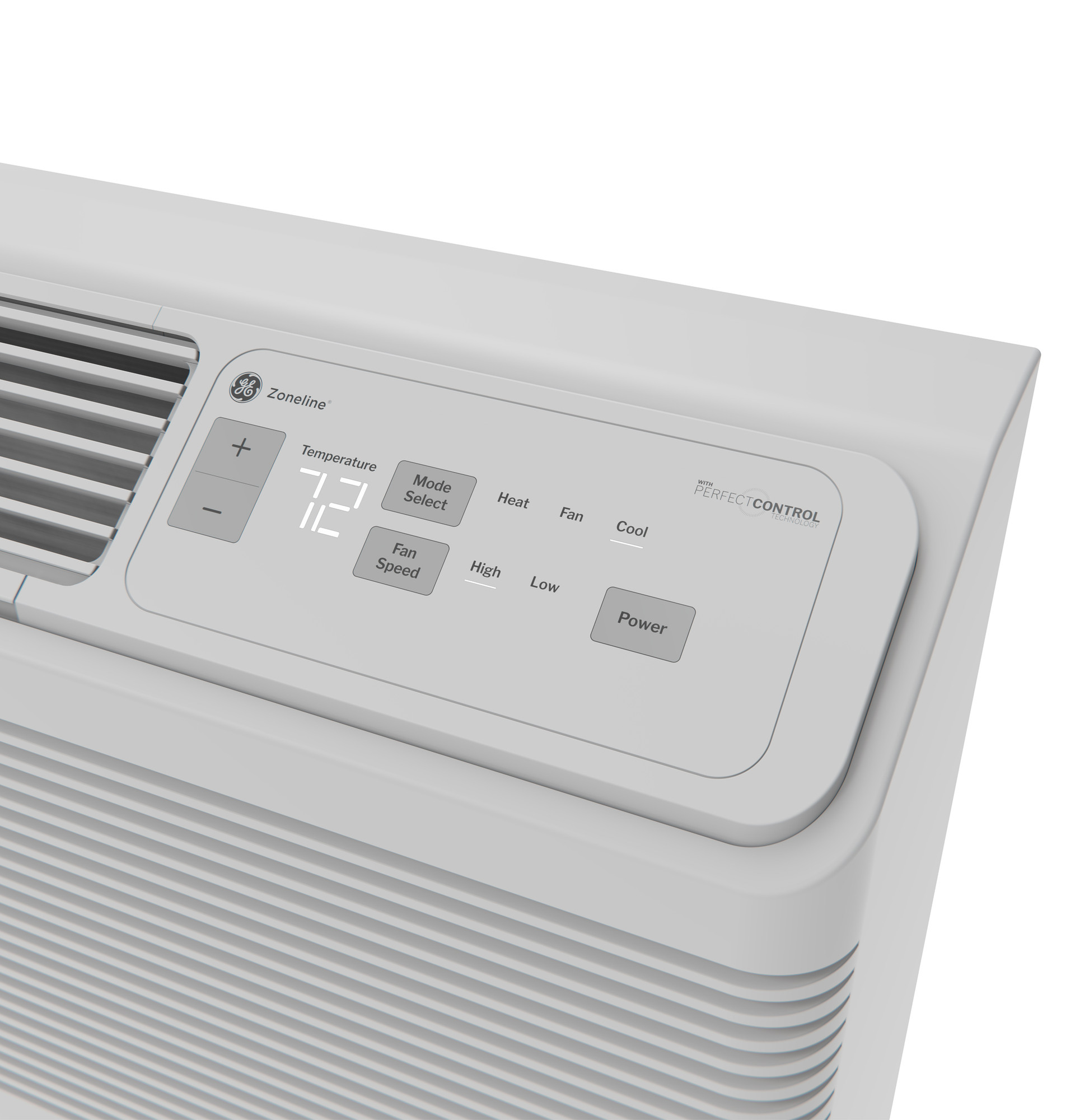

Electronic touch control with LED display
Twin rotor compressor (Ultra-Quiet)
On-board WIFI SmartHQ™ Management ready
Available from Brooklawn Appliance Outlet, serving customers throughout Brooklawn.
Features
Variable Speed Inverter Technology (4K - 15K BTU)
R454B - Most environmentally friendly refrigerant on the market
Heat pump down to 0°F
Makeup air with adjustable cfm
Merv13 filter option
Electronic touch control with LED display
Twin rotor compressor (Ultra-Quiet)
On-board WIFI SmartHQ™ Management ready
Quiet operation with baked on mastic sound barrier
Corrosion protection package
SMC basepan and bulkhead
Dehimidification sentinel
Dual EEV flow control
Boost heat option
Designed & Assembled in America
Date of Manufacture – 2025 or later
Specifications
CAPACITY
| CFM Indoor Fan High | 525 |
| CFM Indoor Fan Low | 250 |
| Cooling EER (BTUH / Watt) | 11.0 / 10.9 |
| Dehumidification (pts./hr.) | 2 |
| Cool BTUH (208V) | 14200 |
| Cool BTUH (230V) | 14300 |
| Cooling BTUH (MAX) | 14300 |
FEATURES
| Central Desk Control Compatibility | Yes |
| Chassis Type | Slide-In |
| Discharge Grille | 2-position |
| Fan Cycle Switch | Yes |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Heating |
| Fan Speed Selections | Hi/Low Fan Only |
| Freeze Sentinel | Yes |
| HSPF2 Rating | 7 |
| Heat - Cool | Yes |
| Heat Sentinel | Yes |
| Heating - Reverse Cycle - COP | 3.4/3.4 |
| Heating System | E Heat/High Demand/Hybrid/Boost/HP Only |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 95 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R454B |
| Rotary Compressor | Yes |
| SEER2 | 16 |
| Sensible Heat Ratio | 0.75 |
| Temperature Limiting | Electronic 24-Step |
| Temperature Range | 60 - 85 F |
| WiFi Connect | Built-In |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Universal Heaters |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Refrigerant Charge (oz.) | 29 |
| Fan Motor | 2 |
| Fan Motor | EC Controlled |
| Control Type | Standard Microcomputer |
| Control Type | Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Electronic Micro Computer Control | Yes |
| Filter Type | Rigid Frame |
| Filter Type | Slide-Out |
| Heat Pump | Yes |
APPEARANCE
| Color Appearance | Grey White |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 123 lb |
| Net Weight | 113 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
POWER / RATINGS
| Cooling - Amperes | 5.8/6.4 |
| Cooling - Watts | 1295/1300 |
| Heating BTUH | 4,000 - 14,000 |
| Heating - Electric - Heater Amps | 5.2/5.7 |
| Heating - Electric - Heater Watts | 1165 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed system |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
ACCESSORIES
| Accessories Required for Installation | RAB42 - Wall Case |
| Accessories Required for Installation | Outdoor Grille |
