$3,952.00

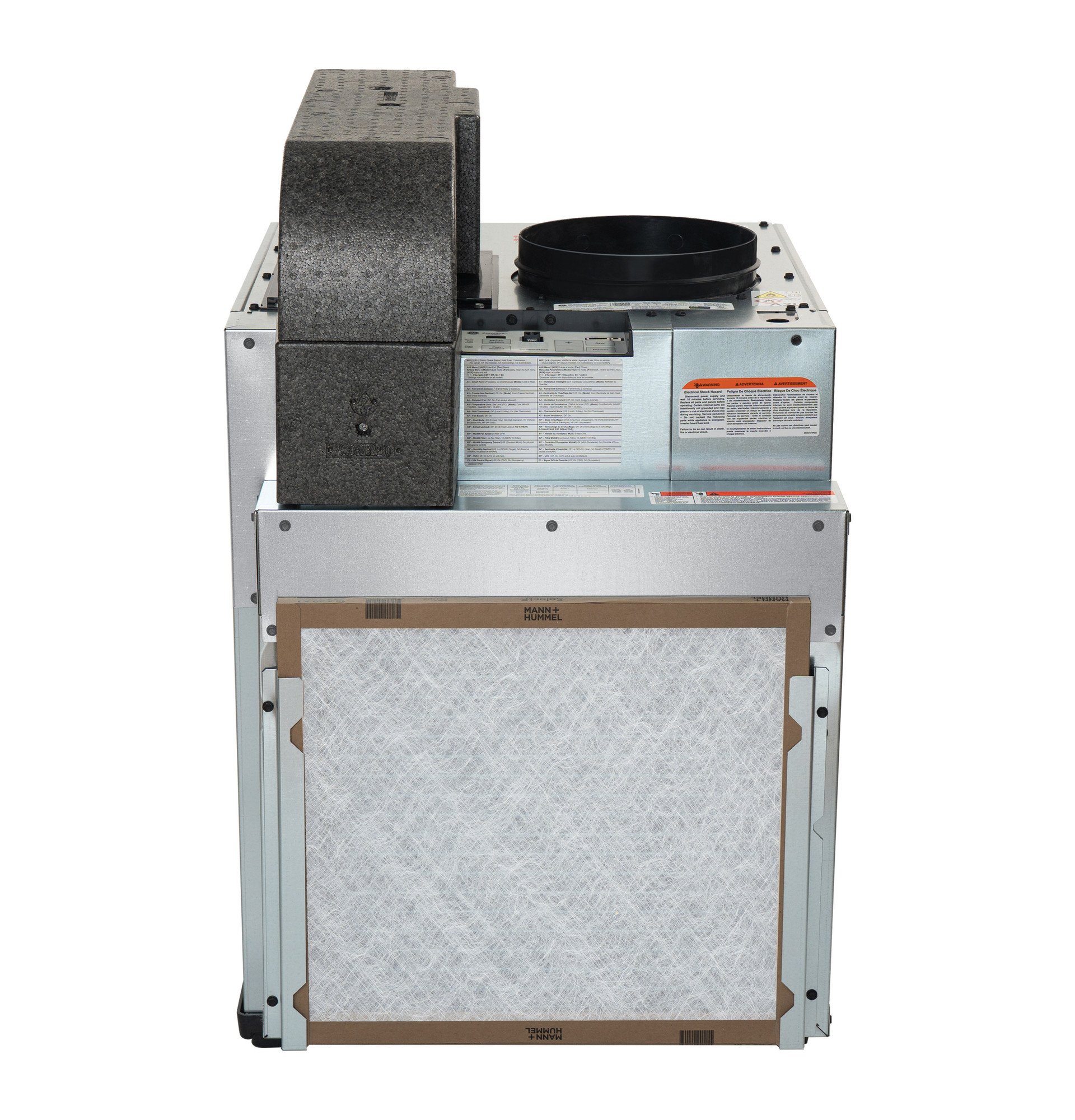

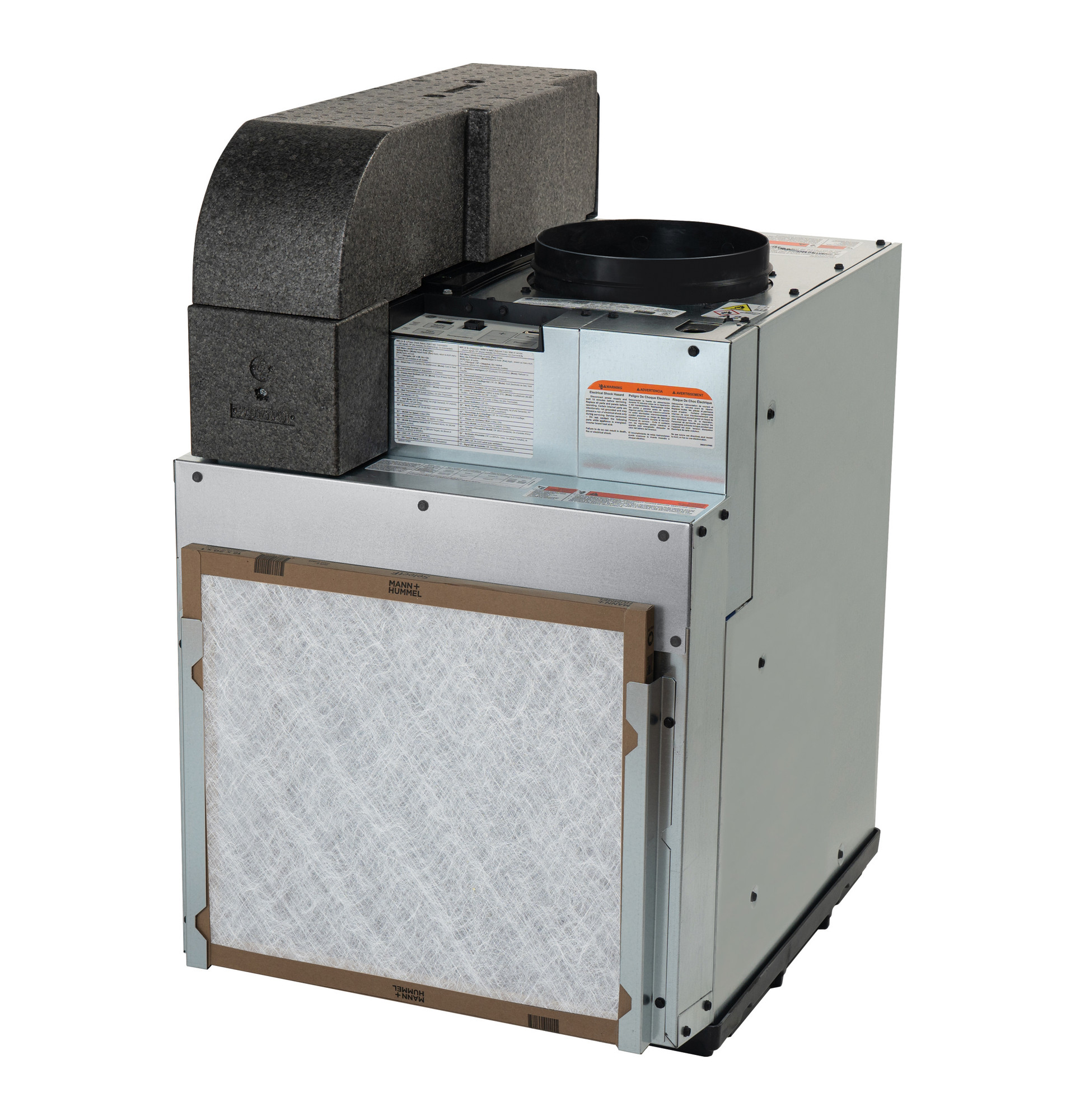

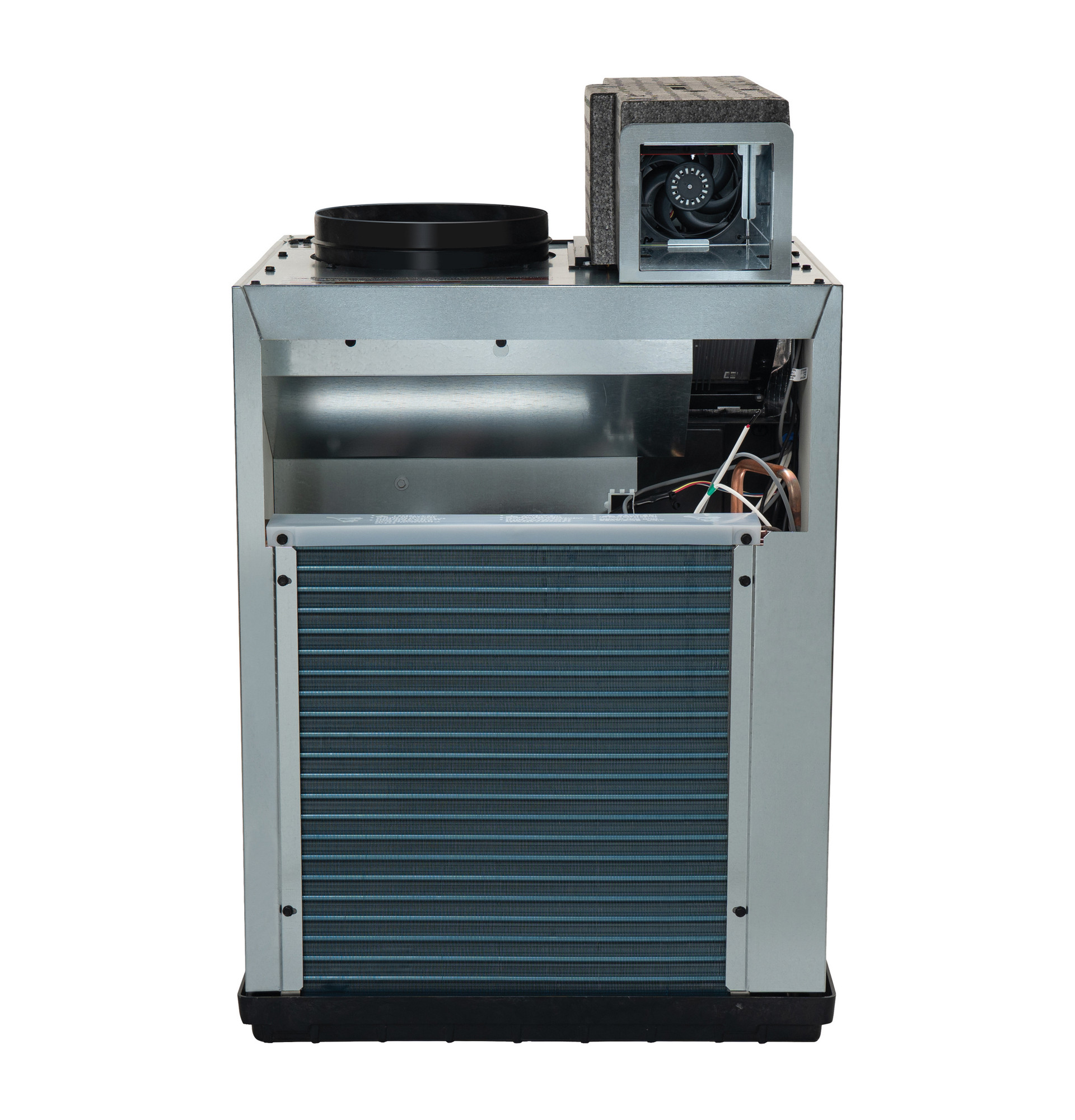

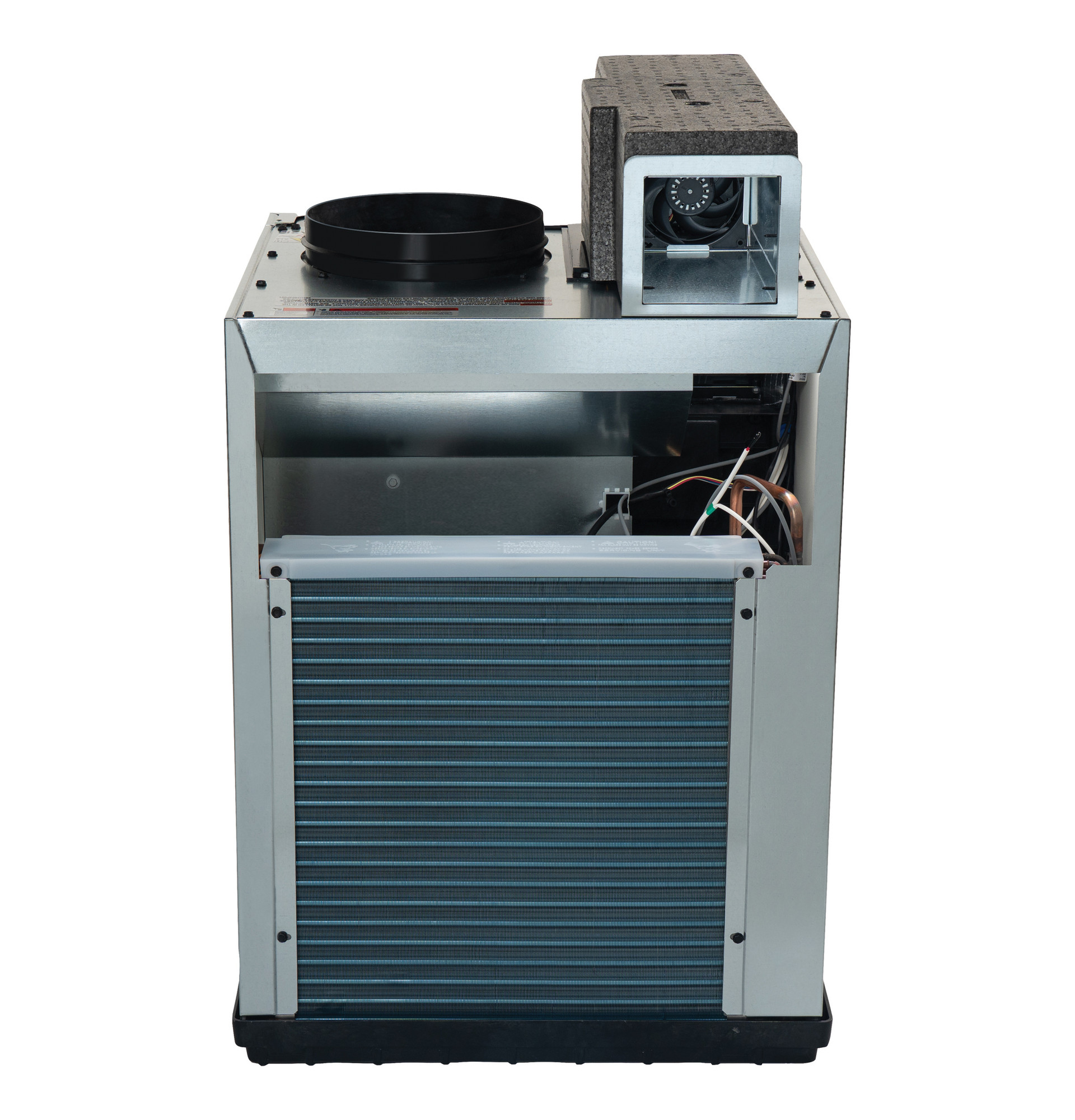

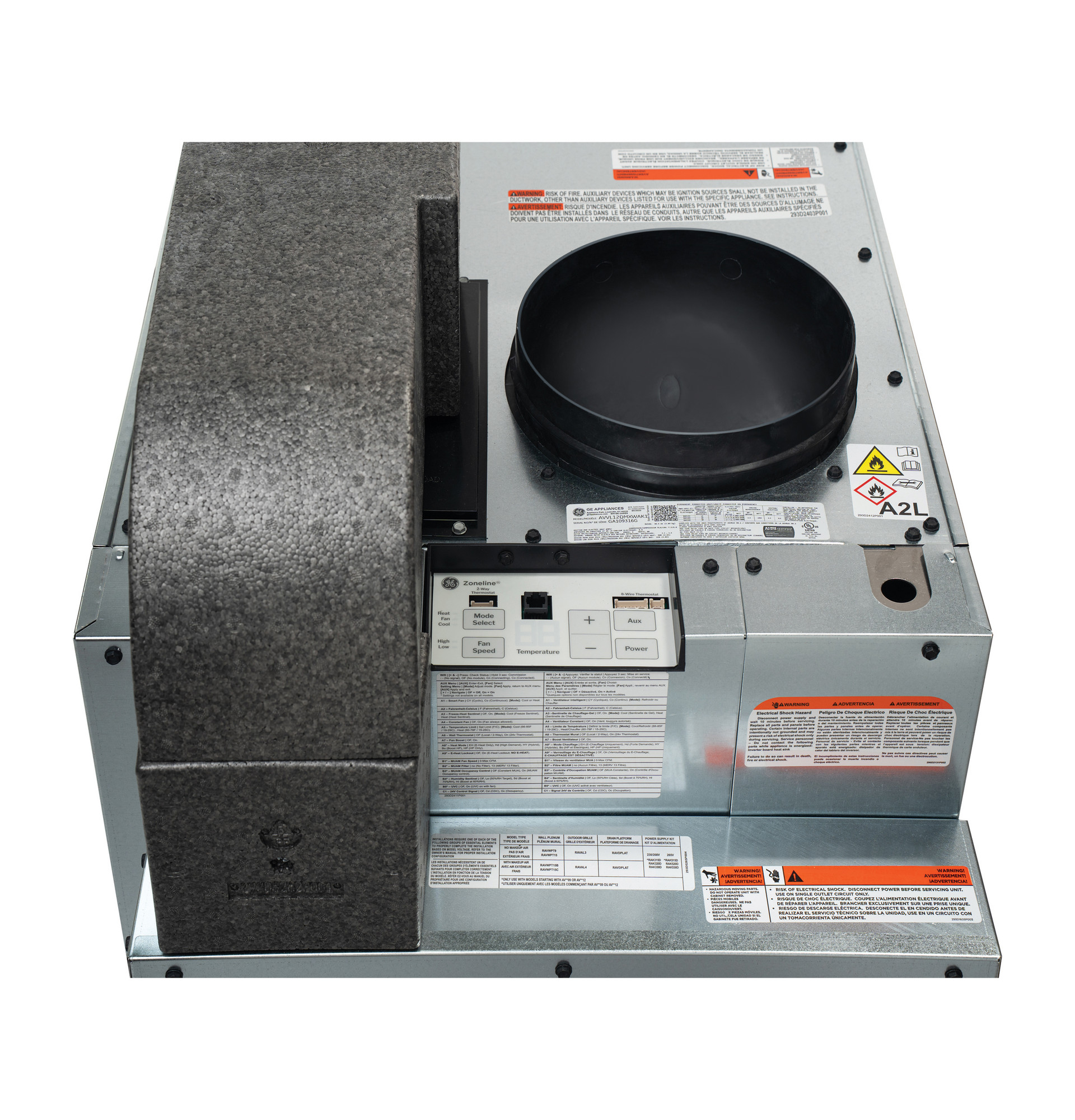

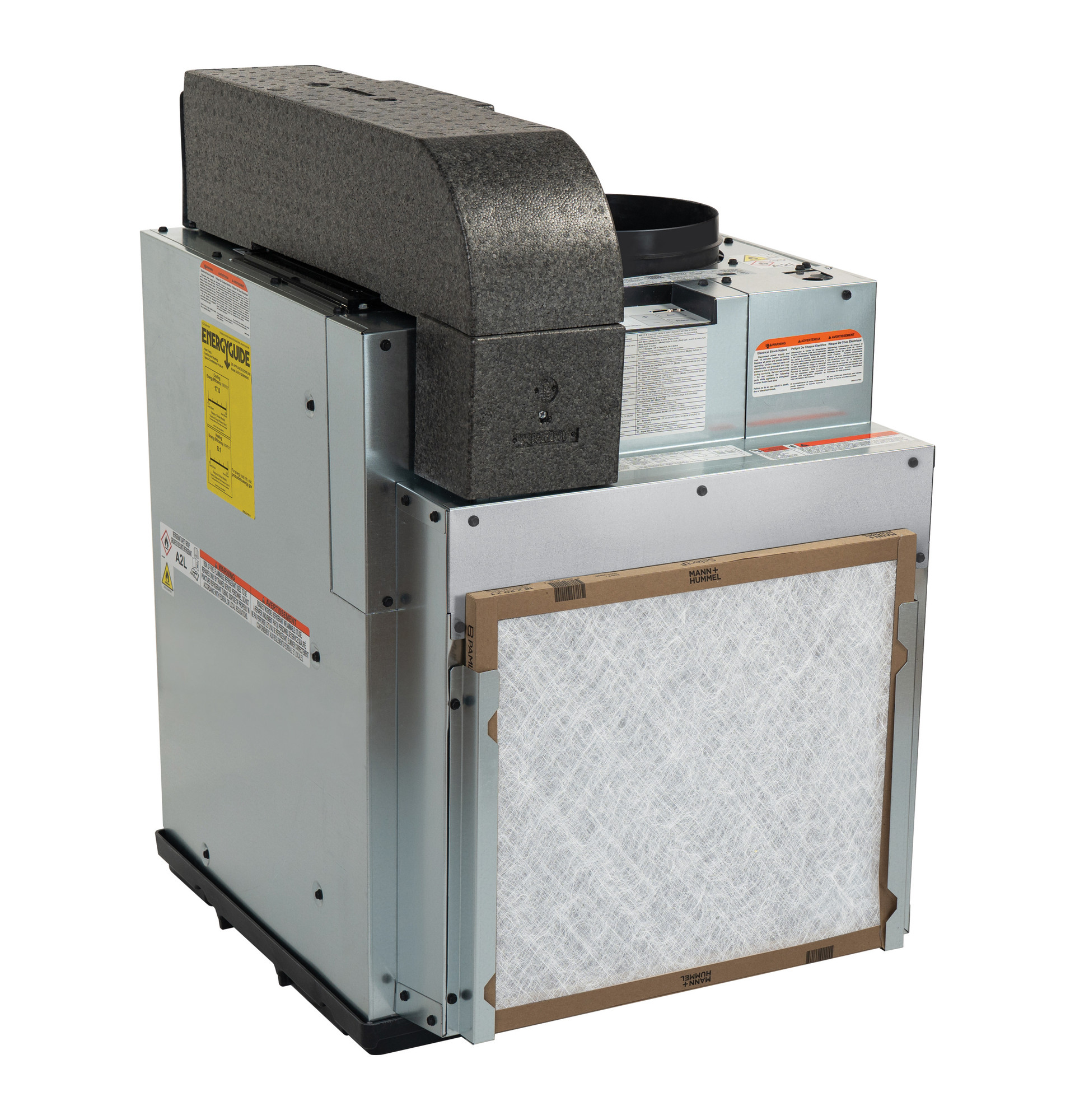

GE Zoneline® Heat Pump, Single Package Vertical Air Conditioner, 230-208 Volt - AVVL24DMXWA
GE Zoneline® Heat Pump, Single Package Vertical Air Conditioner, 230-208 Volt
Model: AVVL24DMXWA
GE Zoneline® Heat Pump, Single Package Vertical Air Conditioner, 230-208 Volt
Model: AVVL24DMXWA
$3,952.00
Color : Other
$3,952.00
Key Features
Designed & Assembled in America
R454B Refrigerant
Inverter Technology
Reverse Cycle Defrost
Quick Installation
Insta-Platform
Self-Contained Drainage System
Self-Aligning Lock-In-Place System
Available from Brooklawn Appliance Outlet, serving customers throughout Brooklawn.
Features
Designed & Assembled in America
Date of Manufacture – 2025 or later
R454B Refrigerant
Most environmentally friendly refrigerant on the market
Inverter Technology
Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Reverse Cycle Defrost
Advanced defrost capability allows for extended heat pump down to 0°F
Quick Installation
Complete installation for the interior makes installation 60% faster!
Insta-Platform
Eliminates the need for on-site customized platform construction saving time and money
Self-Contained Drainage System
Easy installation allows for simple chassis removal while leaving plumbing completely intact
Self-Aligning Lock-In-Place System
Insta-platform and VTAC are self-aligning with a lock-in-place system ensuring the unit is engaged with the plenum gasket
Ultra-Quit
Delivers quiet cooling power with smooth sound for a good night's sleep
Corrosion Protection
Exclusive rust-proof base pan and bulkhead, double painted compressor, stainless steel end brackets, and painted motor surfaces provide another level of corrosion protection

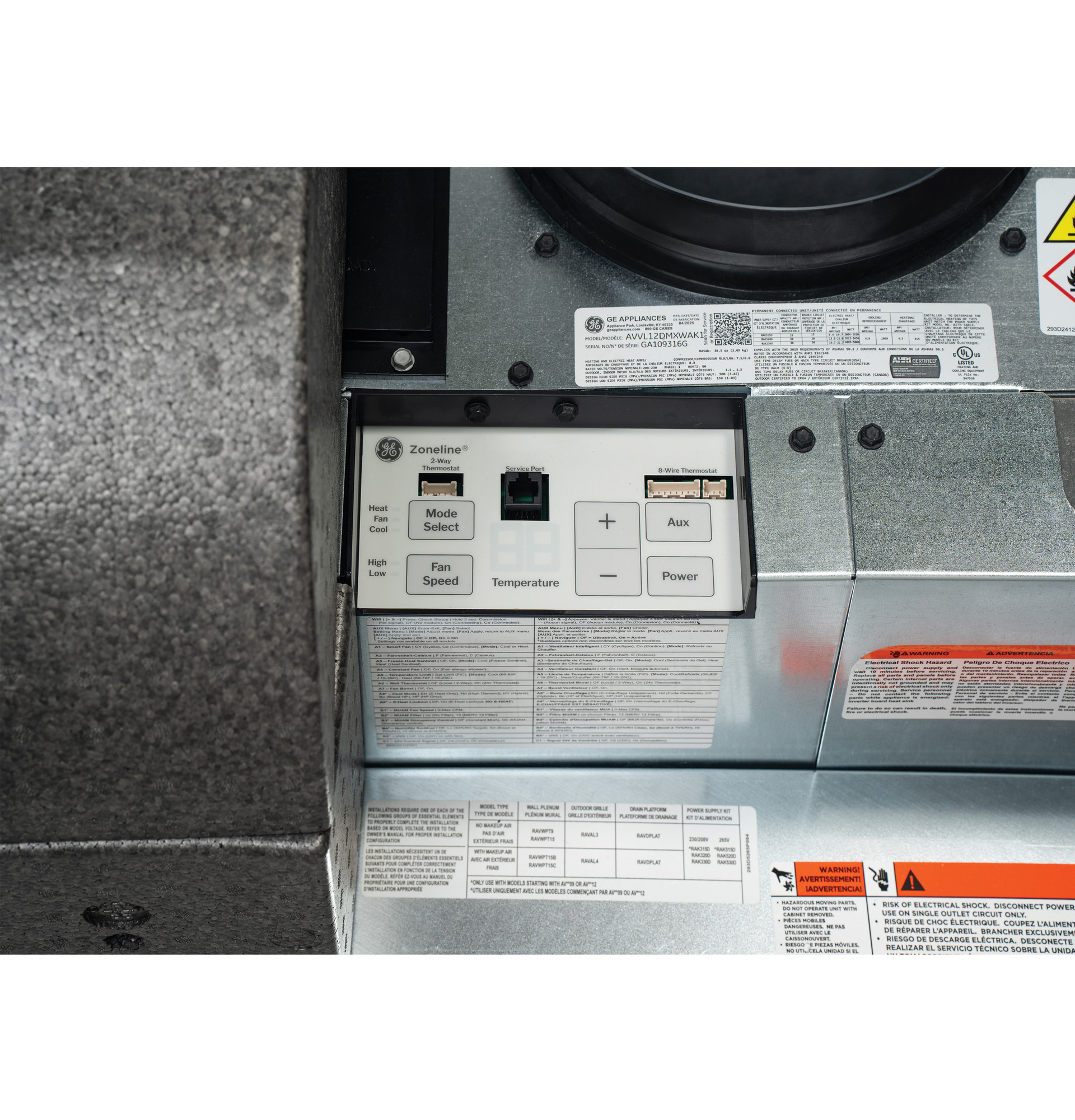

On-Board Diagnostics
Electronic controls give clear and fast diagnostic data and fault codes, for fast and easy resolution
SmartHQ™ WIFI Capability
On-board Wifi SmartHQ™ Management gives property managers the ability to monitor multiple units remotely, enhancing guest experience
Specifications
CAPACITY
| Cooling BTU (230 / 208V) | 22400 |
FEATURES
| COP2 @ 47F | 2.8 |
| EER | 8.9 |
| HSPF2 Rating | 7.7 |
| Heat Pump COP2@17F (Nominal/Max) | 2 (230V Performance Data Listed) |
| Heating BTU @17F (Nominal/Max) | 17000 |
| Heating BTU Range @ 47F | 5,000-23,000 |
| Makeup Air CFM | 30-70 (no filter) 20-50 (with MERV13 filter kit) |
| Refrigerant Type | R454B |
| SEER2 | 16 |
| Sensible Heat Ratio | 0.7 |
| Zoneline Features | Insta - Platform™ |
| Zoneline Features | Self-Contained Drainage System |
| Zoneline Features | Fast-Connect Plumbing |
| Zoneline Features | Quick-Install Plenum |
| Zoneline Features | Ultra-Quiet |
| Zoneline Features | Reverse Cycle Defrost |
| Zoneline Features | Corrosion Protection |
| Zoneline Features | Onboard Diagnostics |
| Zoneline Features | SmartHQ™ Wifi Ready (Requires Subscription) |
| Zoneline Features | Saves 60% on Install Time |
| Zoneline Features | Inverter Technology |
| Zoneline Features | Adjustable Makeup Air |
| Zoneline Features | Self-Aligning, Lock-In-Place System |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 150 lb |
| Net Weight | 137 lb |
POWER / RATINGS
| Cooling - Amperes | 10.9 |
| Cooling - Watts | 2430 |
| Cooling BTUH Range (@95F Outdoor) | 5000 - 24,000 |
| Cooling BTUH (MAX - 115F) | 20200 |
| Cooling BTUH (MAX - 75F) | 27800 |
| Heat Pump - Amps | 4.4 |
| Heat Pump - Watts | 925 |
| Rated Heat Pump BTU | 21500 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
| Warranty Notes | See written warranty for full details |
