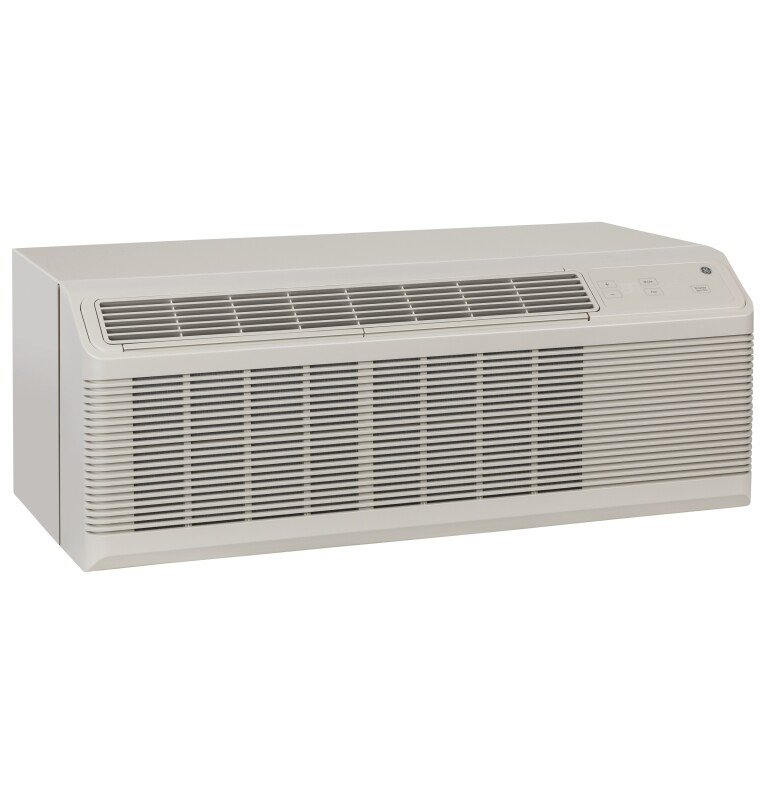

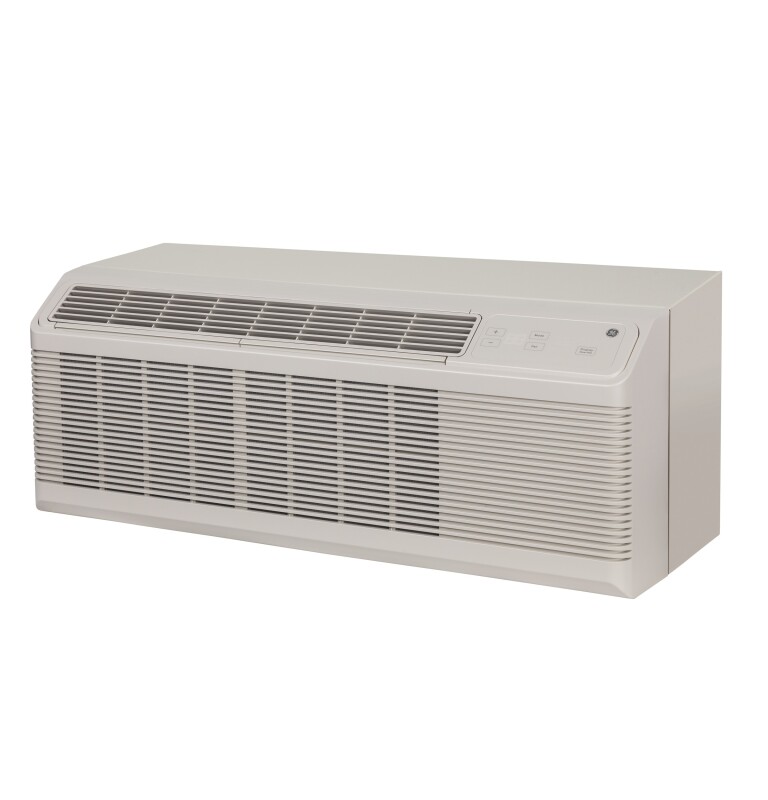

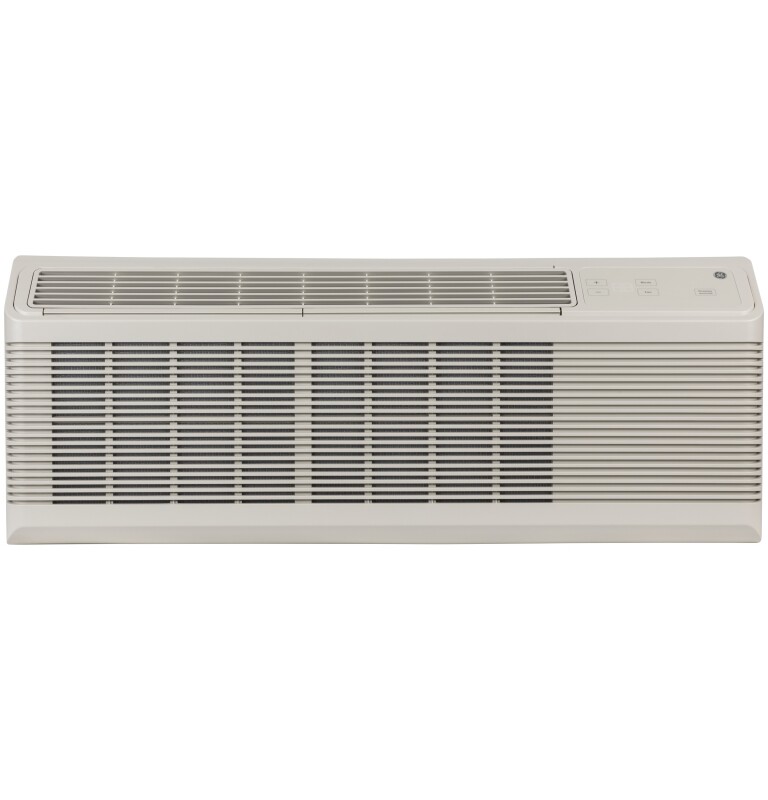

Zoneline Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt - AZ45E12EAP
Zoneline Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt
Model: AZ45E12EAP
Zoneline Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt
Model: AZ45E12EAP
Color : Other
Key Features
Perfect for high humidity climates
Cooling capacity
Energy efficiency
Dehumidification
Indoor fan CFM (high/low)
Fresh air vent CFM (fully open high fan)
Quiet operation
Corrosion resistant
Documents
Available from Brooklawn Appliance Outlet, serving customers throughout Brooklawn.
Features
Perfect for high humidity climates
Removes 20%-35% more moisture from the air than standard Zoneline air conditioners* (*Varies when comparing dehumidification rates of the 7,000/9,000/12,000 BTU base models to their dry air model counterparts)
Cooling capacity
11,000 BTU
Energy efficiency
11.0 EER
Dehumidification
4.2 pints/hour
Indoor fan CFM (high/low)
360/270
Fresh air vent CFM (fully open high fan)
47
Quiet operation

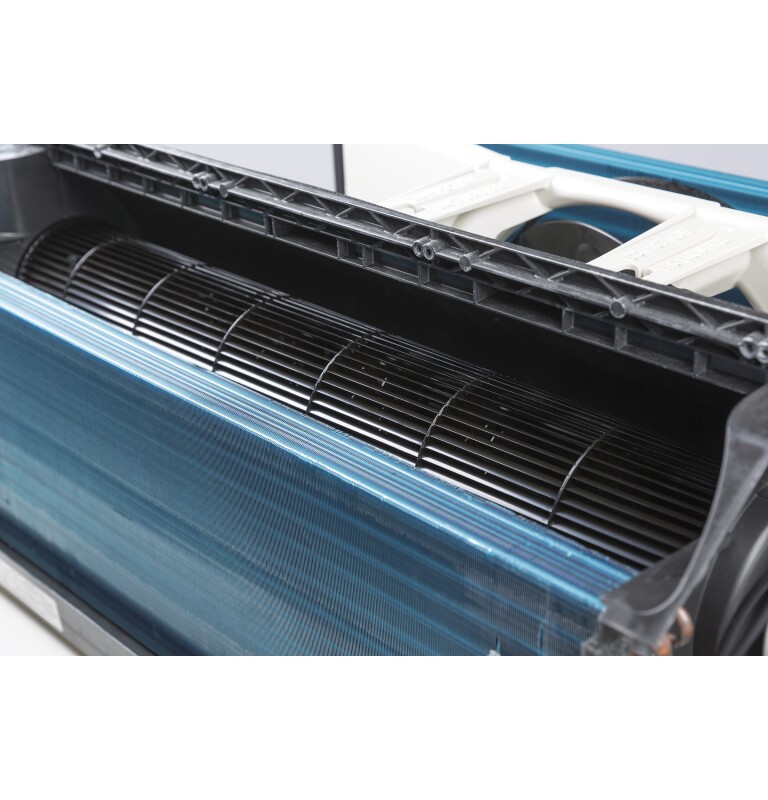

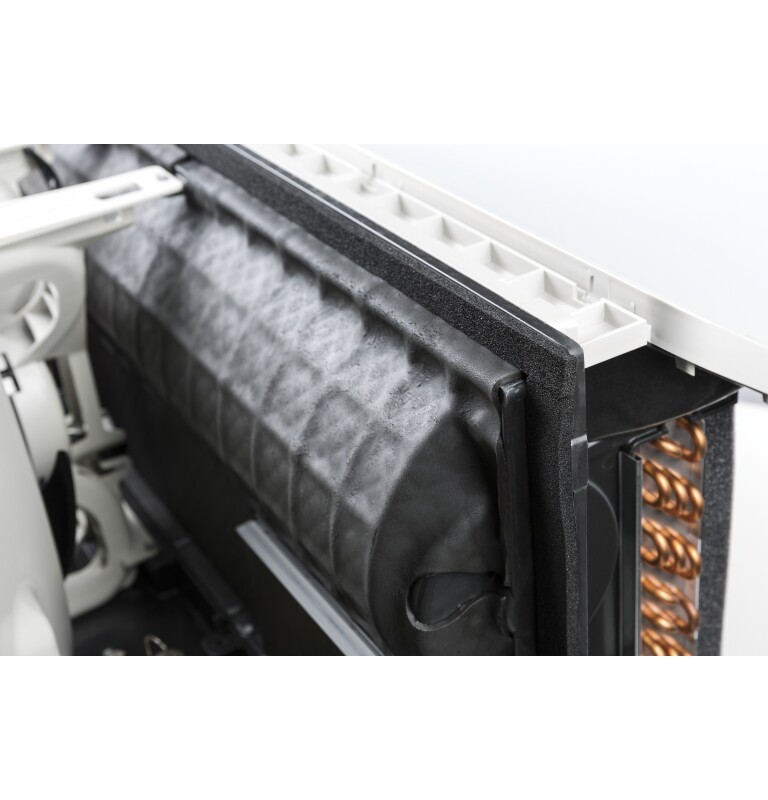

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

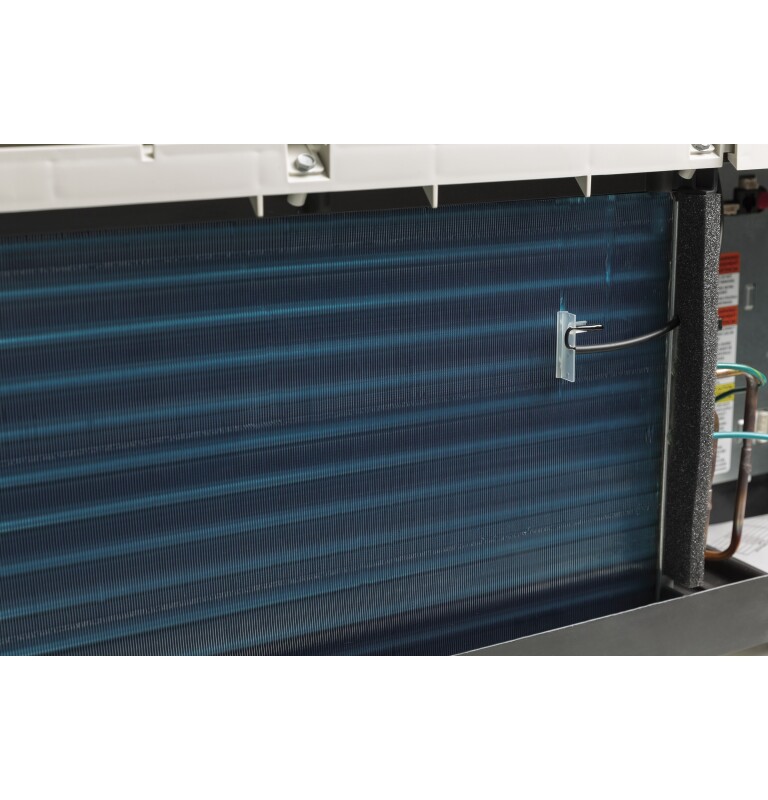

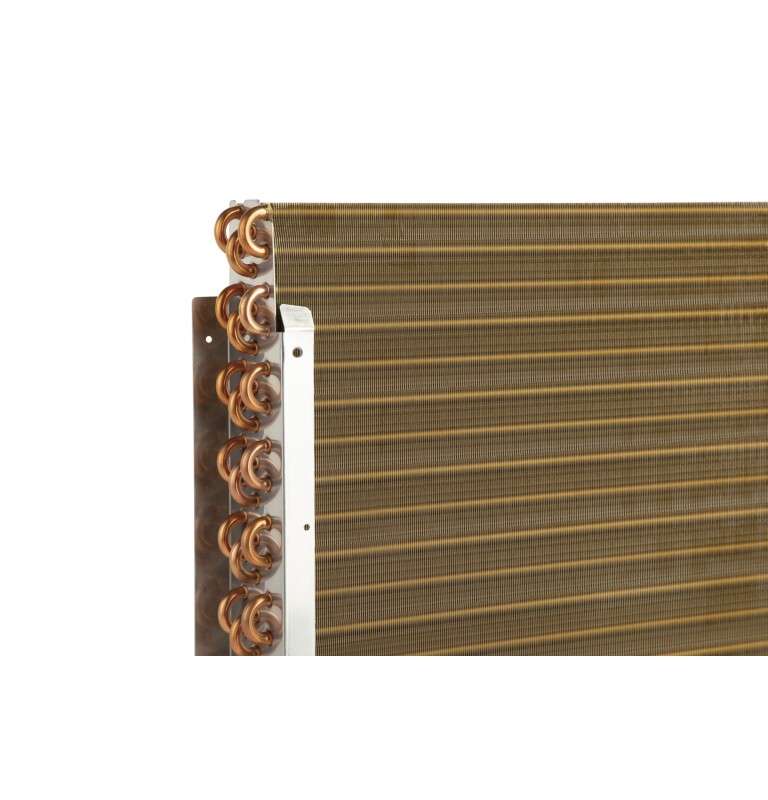

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

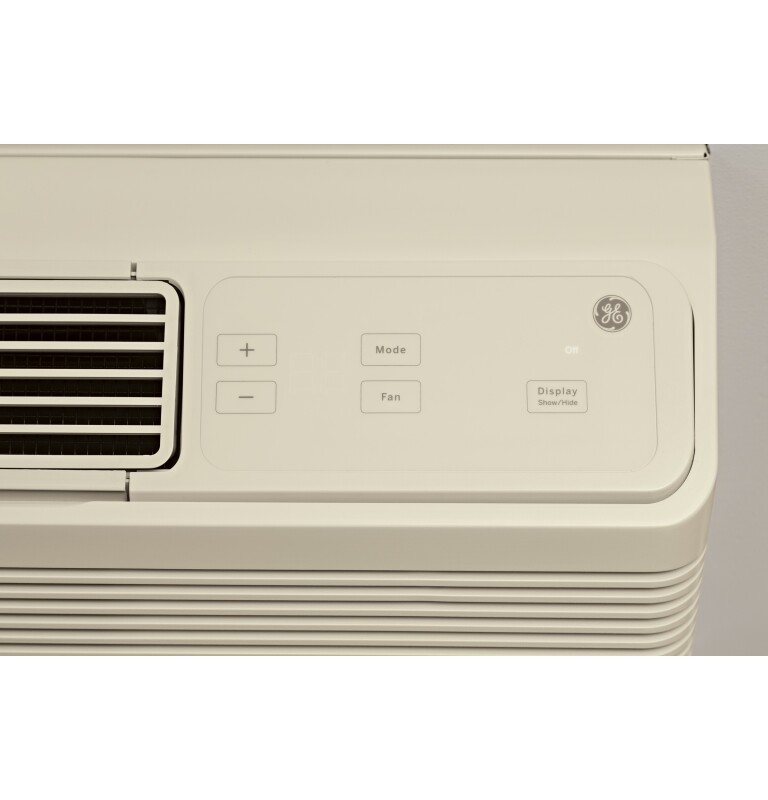

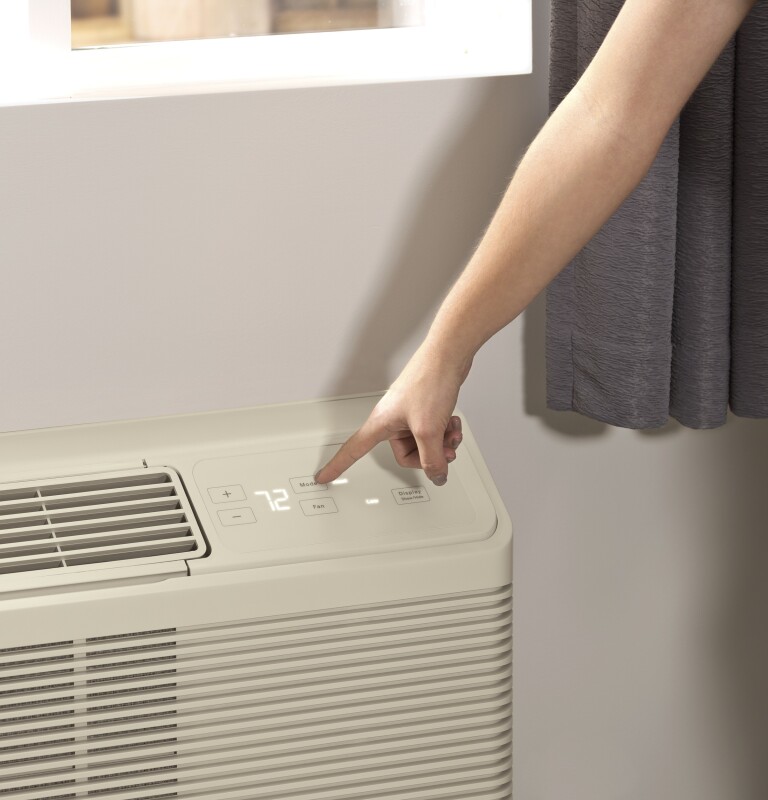

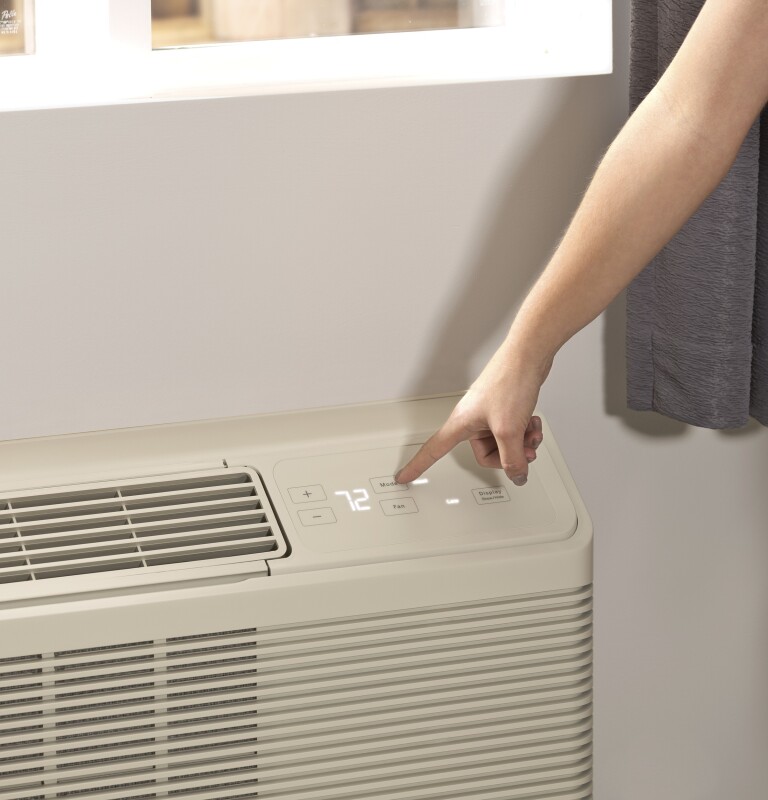

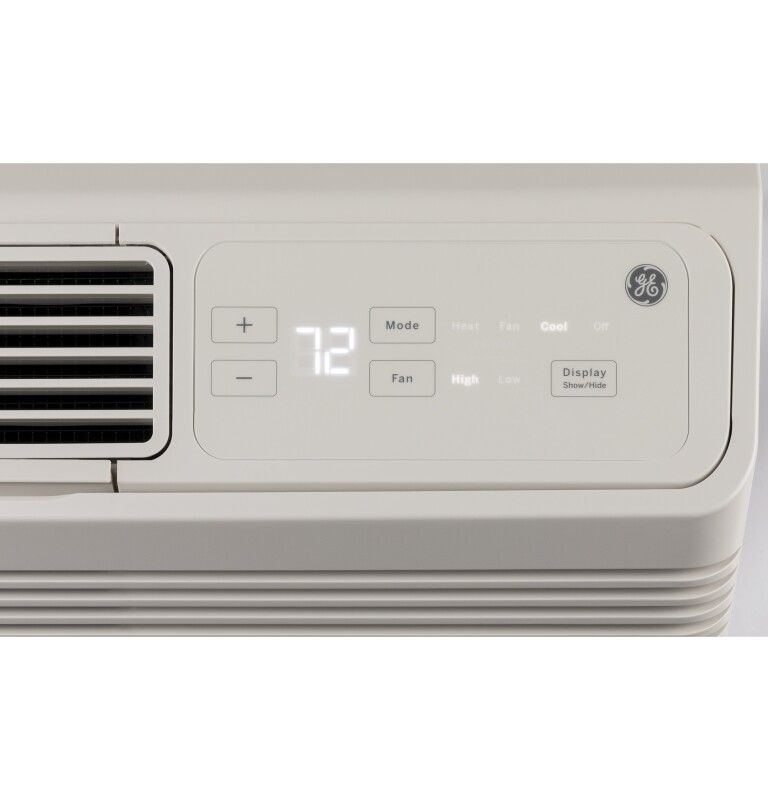

Electronic touch controls with LED display
R-410A refrigerant
SMC base pan

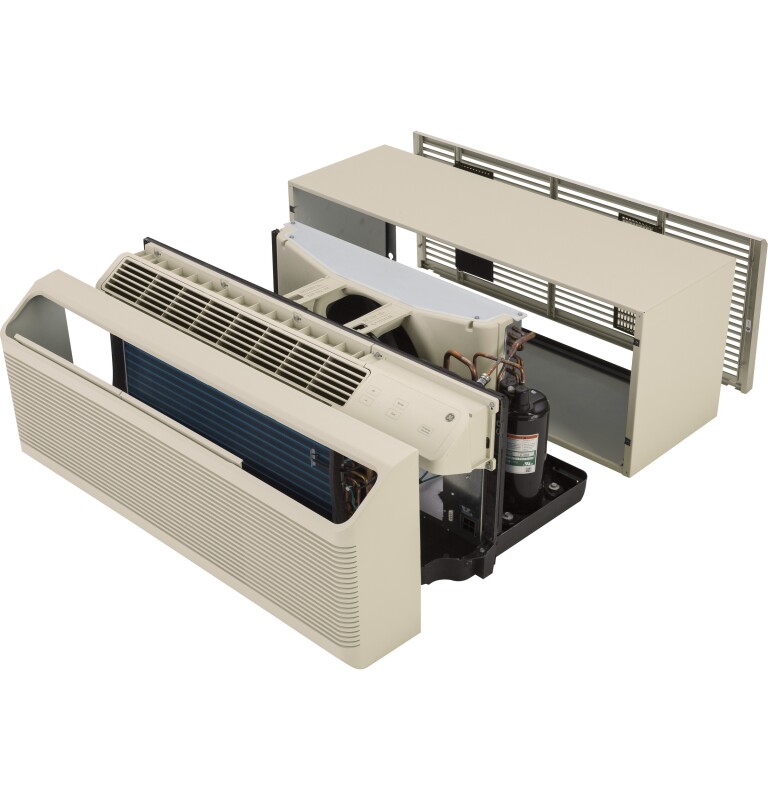

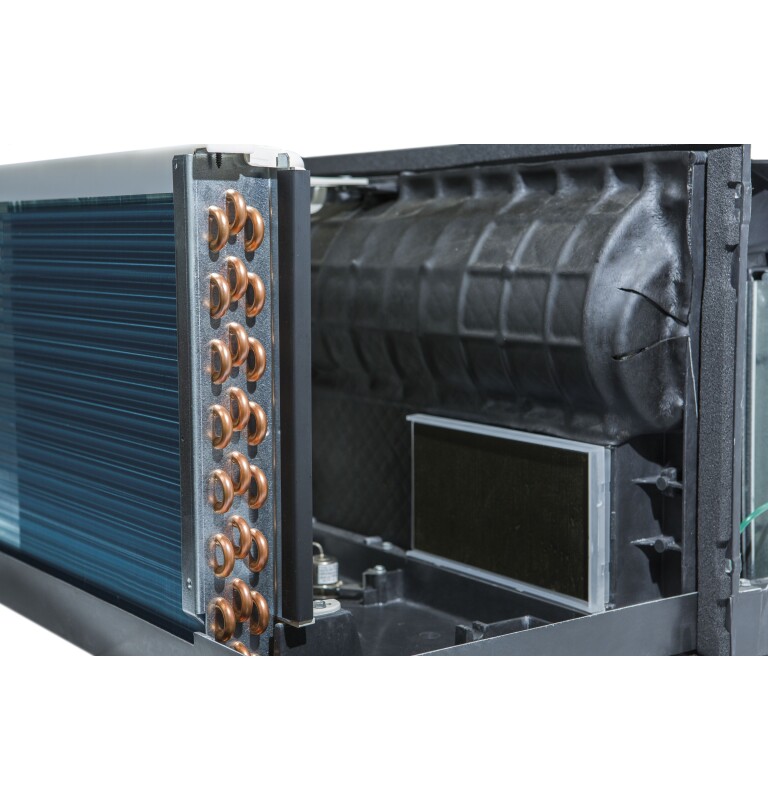

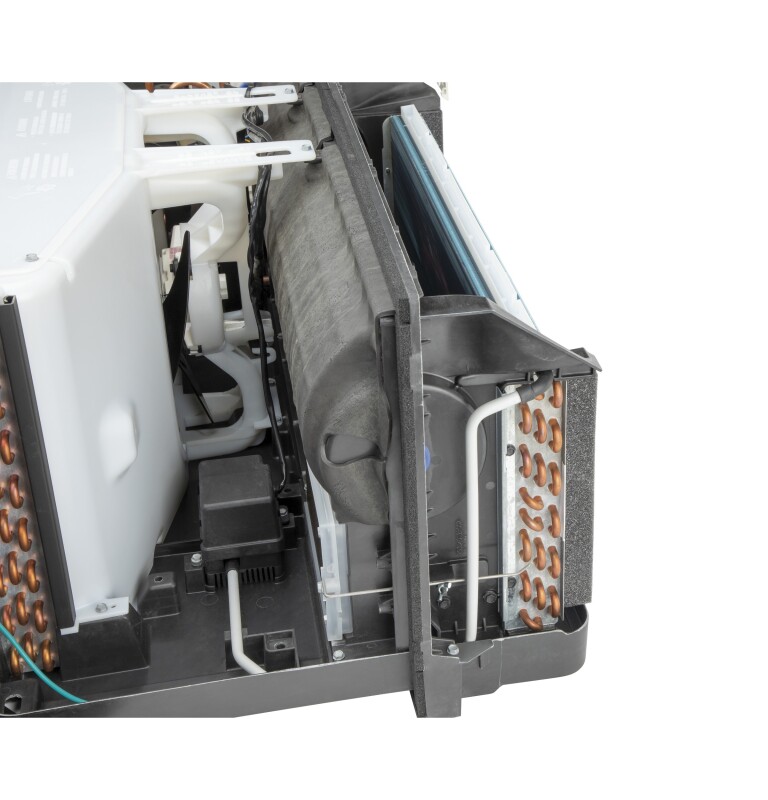

Simplified structure

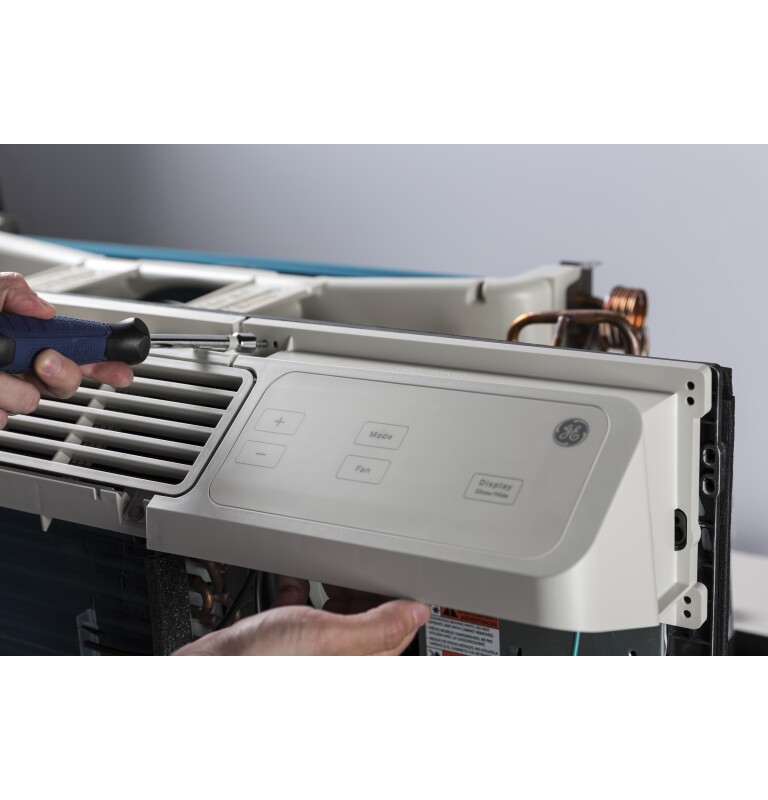

Easy to maintain and service
Designed & Assembled in America
Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 44 |
| Dehumidification (pts./hr.) | 4.2 |
| CFM Indoor Fan High | 360 |
| CFM Indoor Fan Low | 270 |
| Cooling EER (BTUH / Watt) | 11.0 |
| Cooling BTUH (MAX) | 10,900 Btu |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |

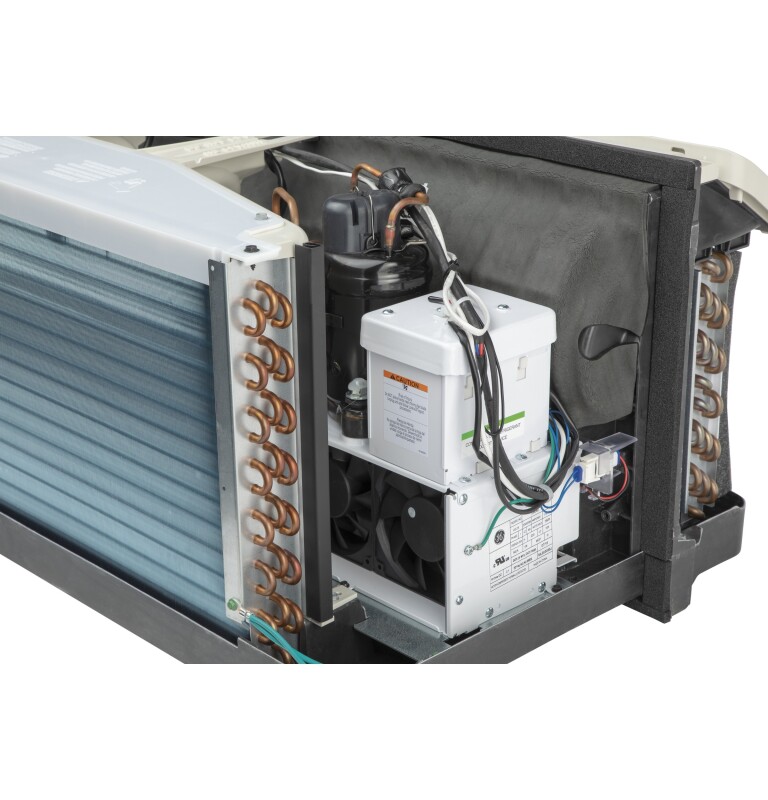

| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Power Factor | 97 |
| Vent Control | 3-position |
| Manual Vent Control | Hidden |
| Heating System | Electric Resistance |
| Dry Air 25 | Yes |
| Louver Style | Reversible |
| Fan Speed Control | Yes |

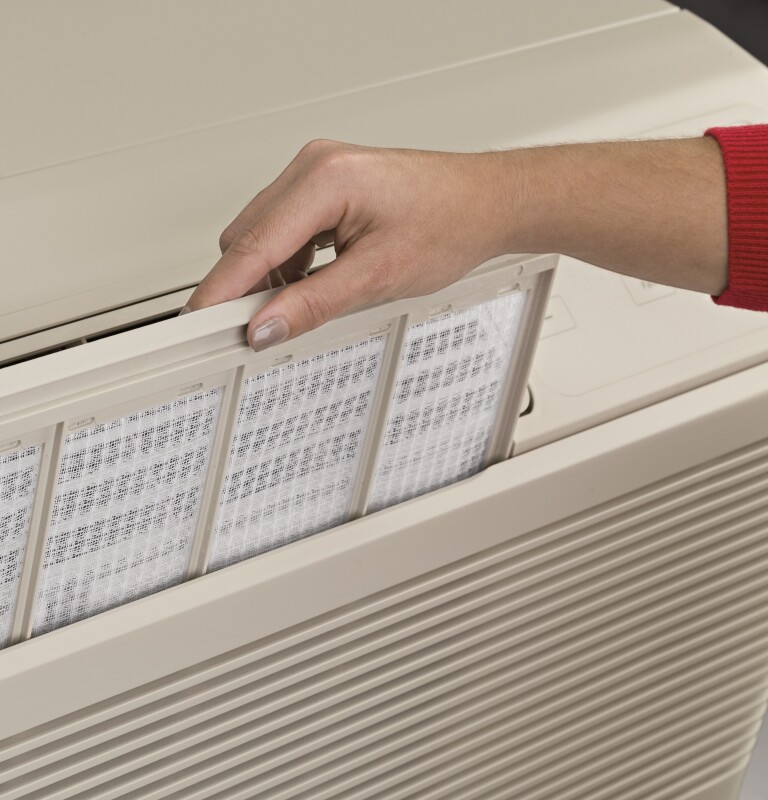

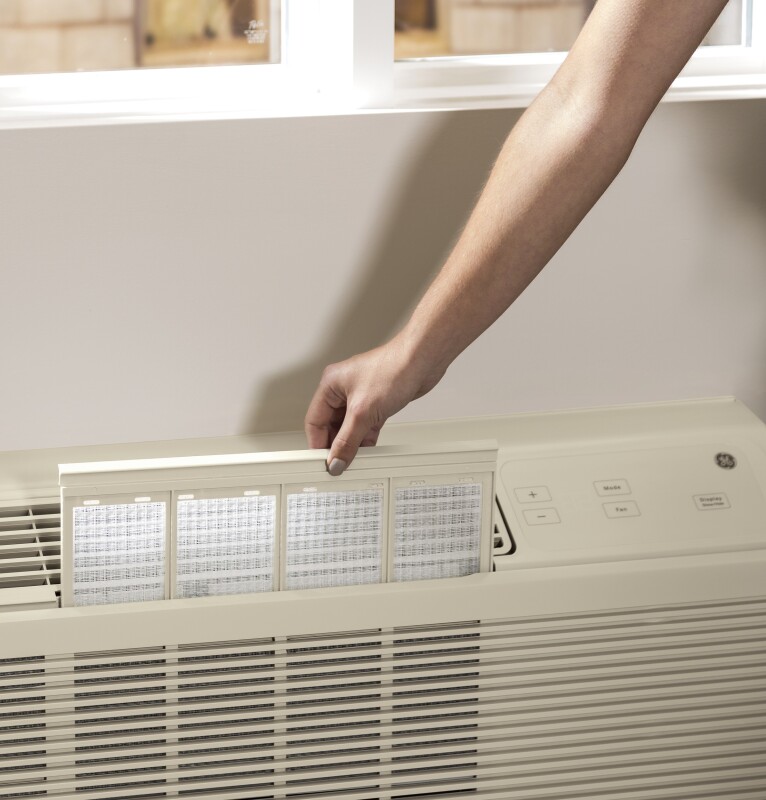

| Filter Type | Rigid Frame |

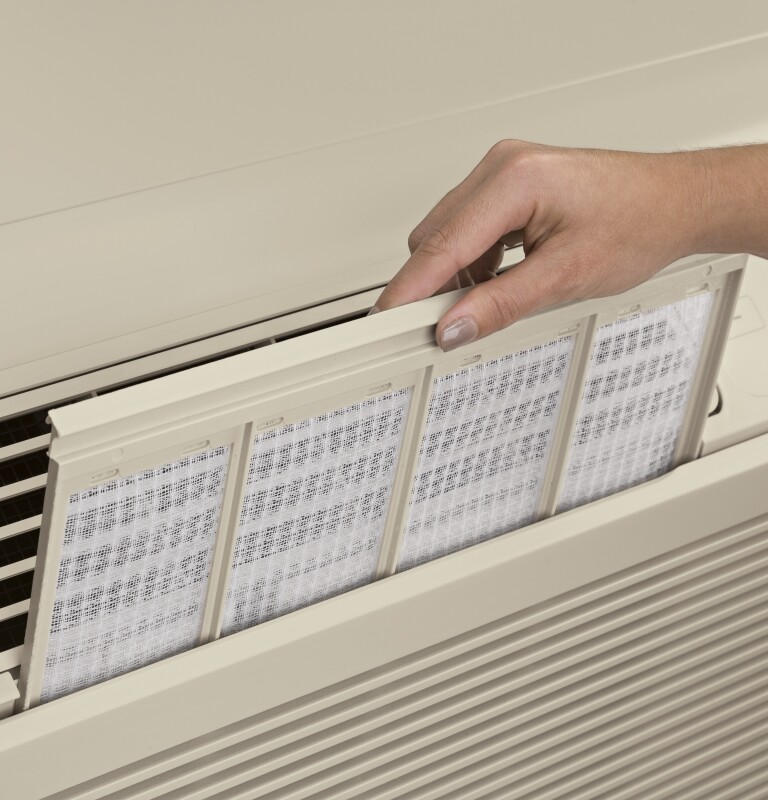

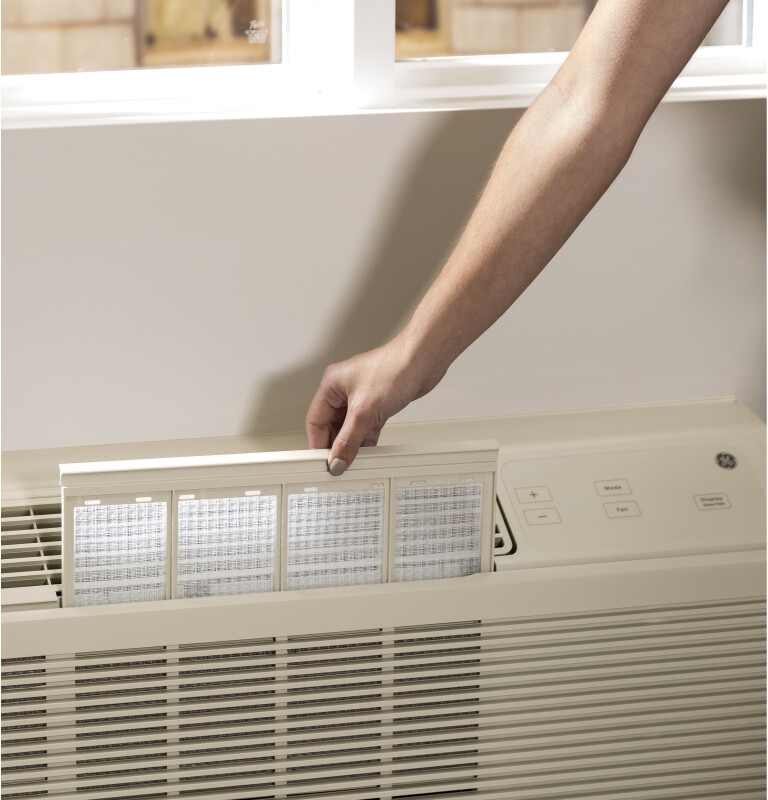

| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Proportional - Integral ID Airflow |
| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Universal Heaters |

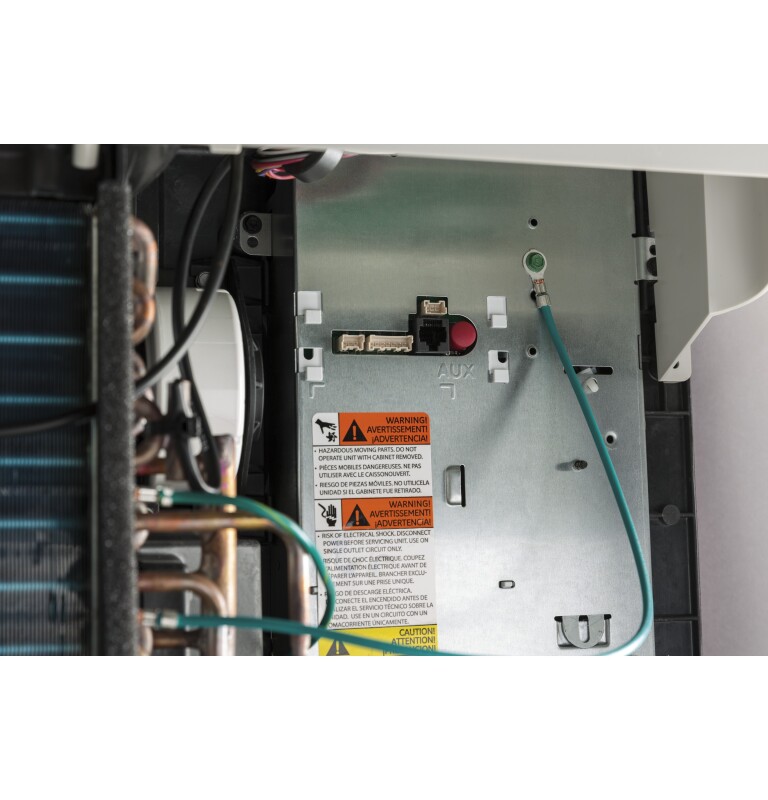

| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 54% |

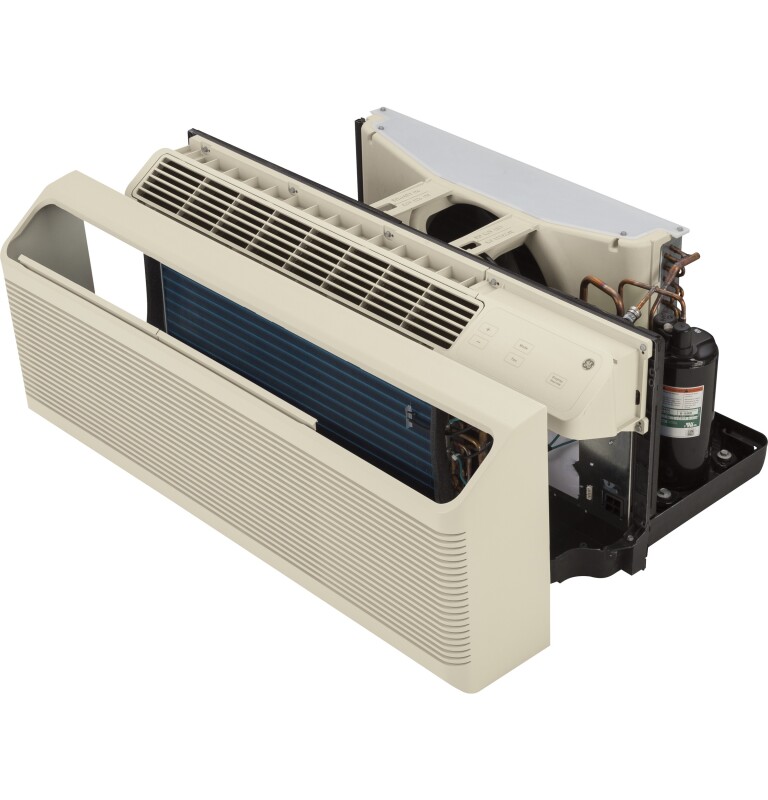

| Chassis Type | Slide-In |
| Corrosion Treated | Yes |
| Control Type | Coverless Backlit White LED Touch Controls |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 3.9 |
| Cooling - Amperes | 3.9 |
| Cooling - Watts | 990 |
| Cooling - Amperes; L.R. | 23.5 |
| Voltage (MAX) | 265 V |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.81 in. |
| Weight | 110 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.81 in. |
| Shipping Weight | 150 lbs. |
| Total of Shipping Weight | 150 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.09 ft³ |
| Dimensional Weight | 100.62 lbs. |
| Total of Cubes | 8.09 ft³ |
| Total of Dimensional Weight | 100.62 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
