Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Light - AE50110DCL

Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Light

Model: AE50110DCL

Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCLBathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCLBathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCLBathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCLBathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCLBathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
+1more

Color : White

Bathroom Exhaust Fan w/ LED Light, 50-110 CFM AE50110DCL
White

Key Features

  • Quiet operation at <0.3-0.4-0.9 sones

  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable

  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else

  • Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts

  • Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation

  • Can be installed in a wall if mounted 8-ft. or more above the floor

  • Includes an 11 watt, 3500K, integrated LED module that lasts up to 25,000 hours for maintenance-free convenience

  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

Read More

Description

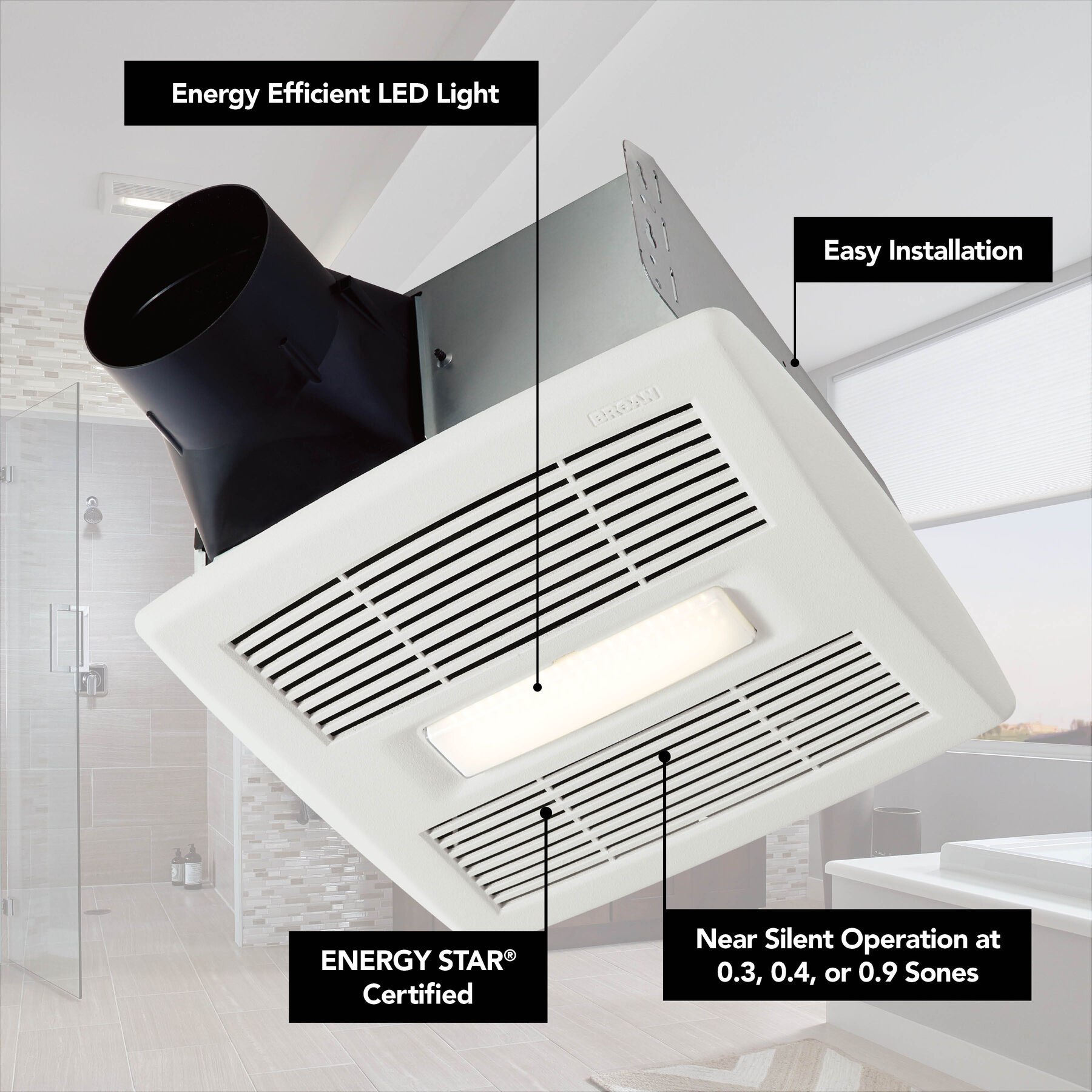

Broan® AE50110DCL Flex DC™ Series Exhaust Bath Fan with LED, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.
Read More

Available from Brooklawn Appliance Outlet, serving customers throughout Brooklawn.

Features
Specifications

Features

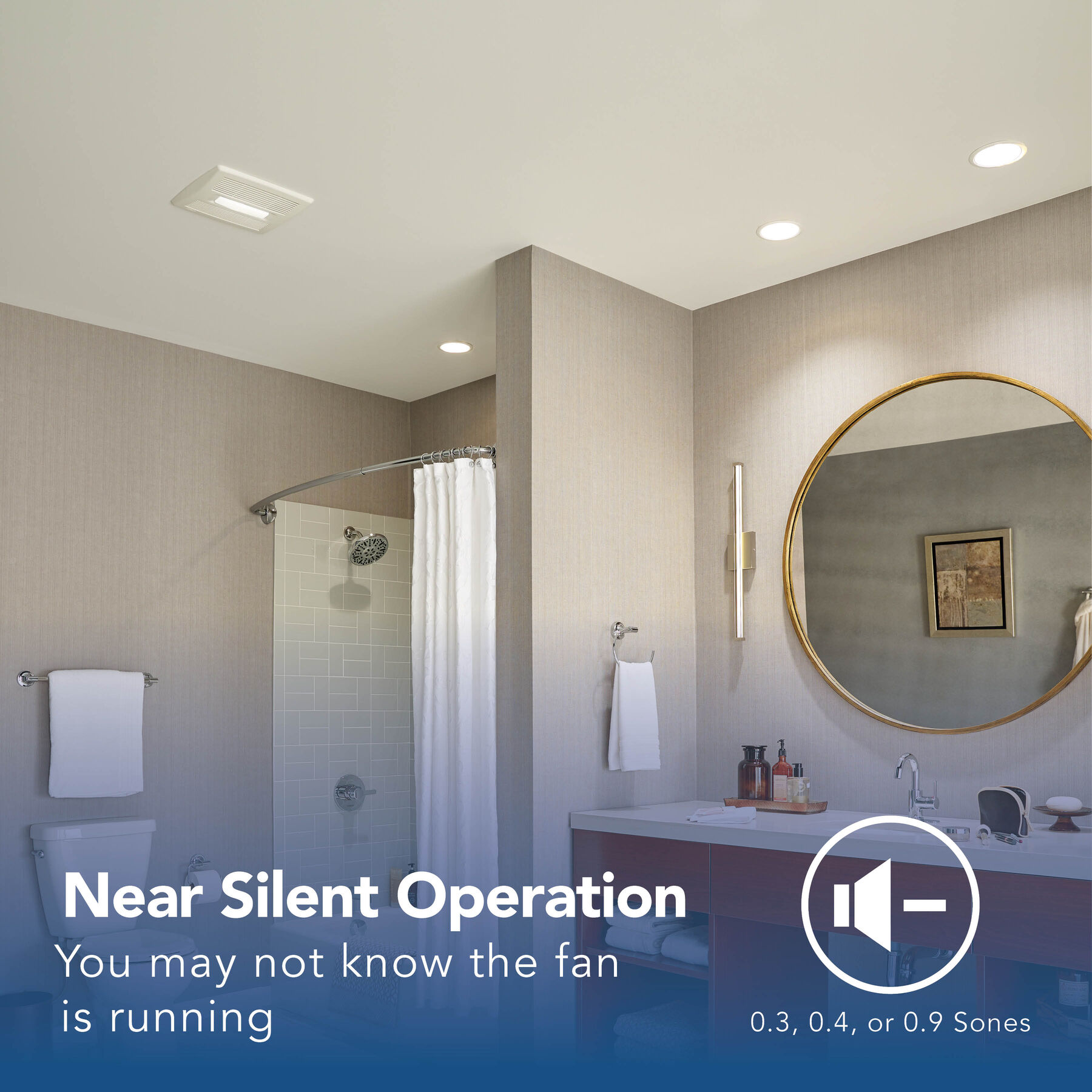

Quiet operation at <0.3-0.4-0.9 sones

Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable

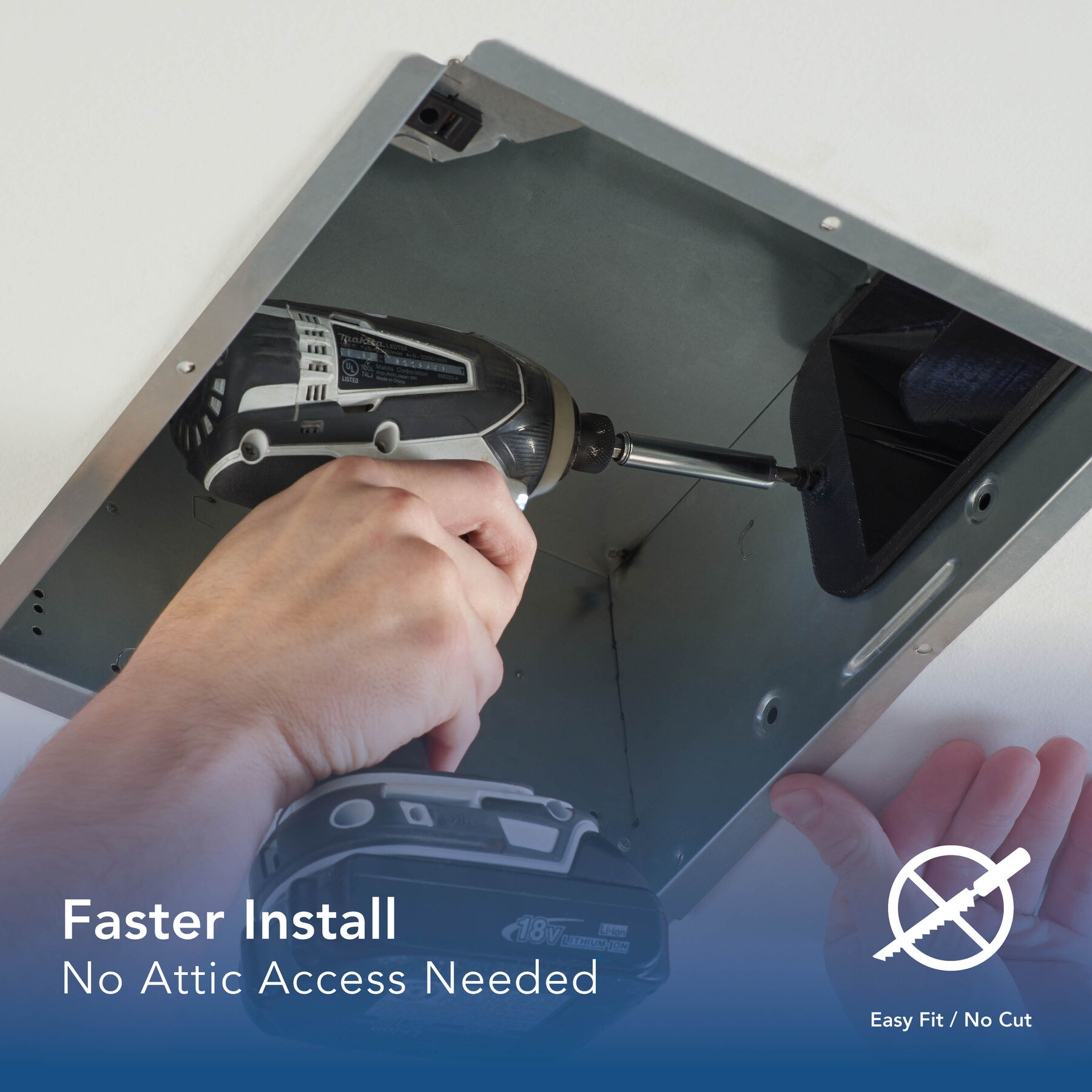

Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else

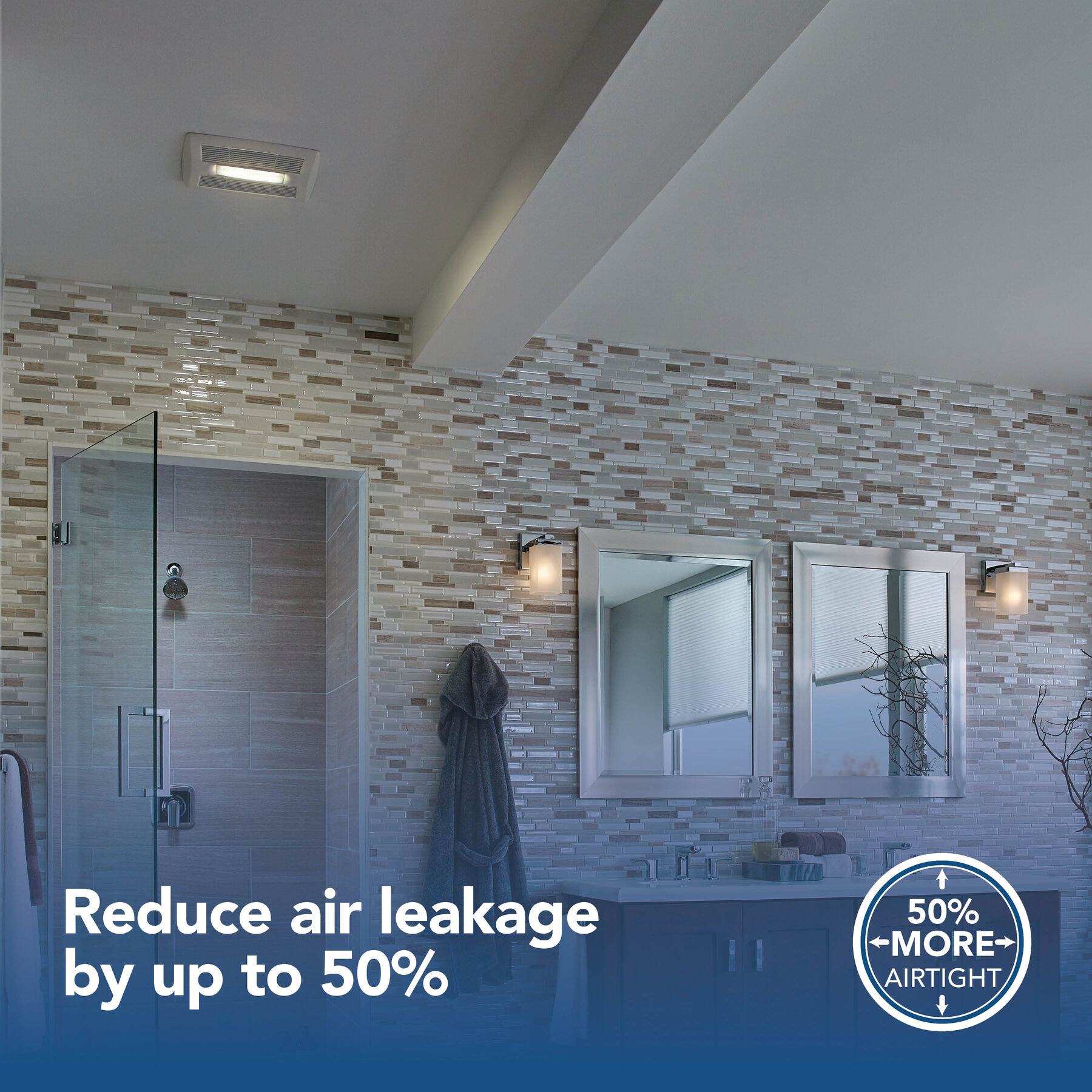

Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts

Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation

Can be installed in a wall if mounted 8-ft. or more above the floor

Includes an 11 watt, 3500K, integrated LED module that lasts up to 25,000 hours for maintenance-free convenience

UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

Quiet, energy efficient exhaust fan to help control air quality

Selectable CFM For flexible installation

Easy to install new / replace existing product from the roomside

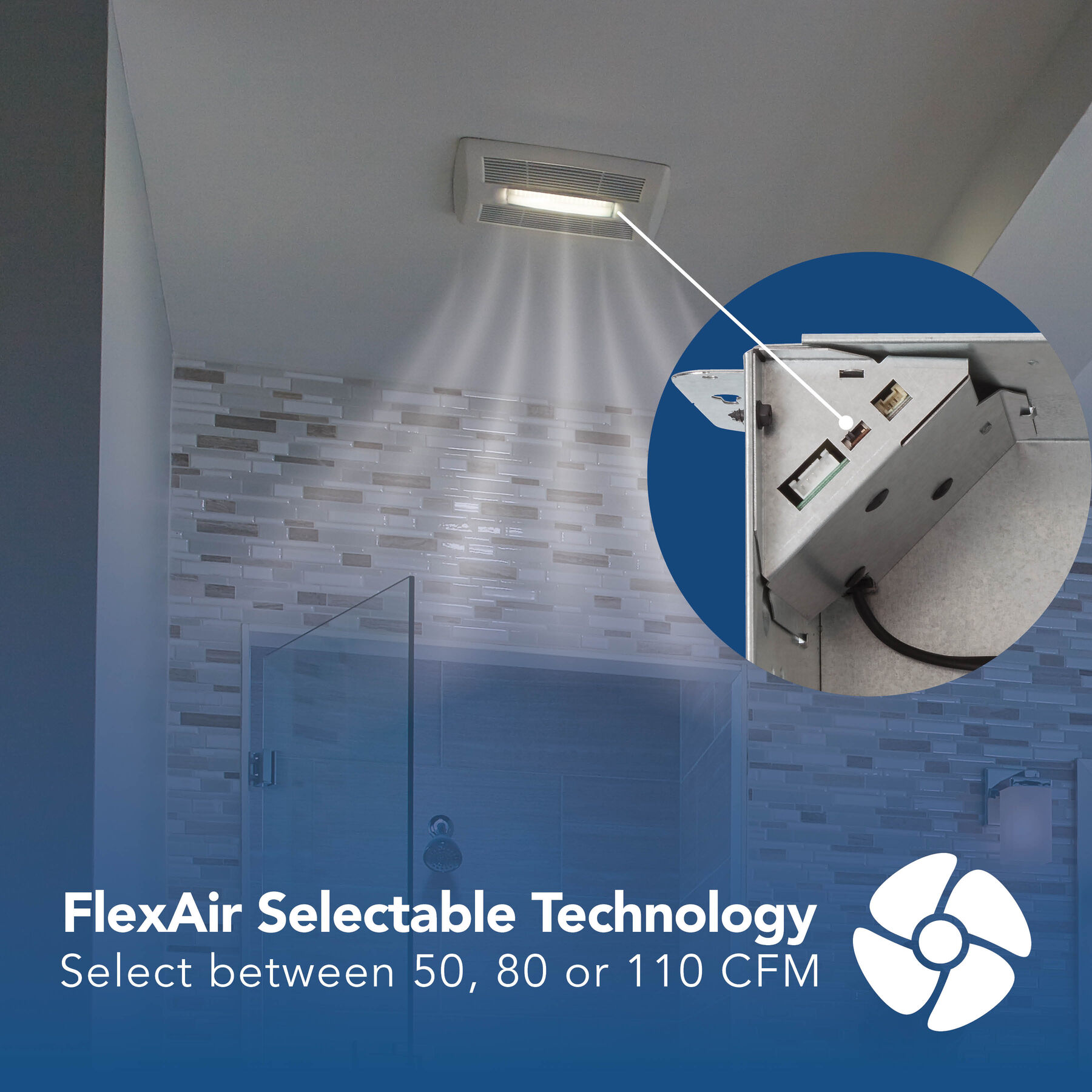

FlexFlow™ technology, select between 50, 80 or 110 CFM

ENERGY STAR® certified product

Specifications

Product Details

CFM50-80-110
Duct Size4
ENERGY STAR® certifiedYes
Grille Length11.75
Grille Width12.5
Housing Dimensions9-1/4" x 10" x 5-3/4"
Sound Level (Sones)0
UL ListedYes
Grille FinishWhite
Humidity SensingNo
Light Bulb Quantity1
Motion SensingNo
Motor Engineered For Continuous OperationYes
Night LightNo
Radiation Damper AvailableYes
Room Side InstallationYes
UL Listed for use over bathtubs or showers when connected to a GFCI circuitYes
Heater Wattage0
Recommended Room Size (Sq Ft)105
Rated Amps0.4
Voltage120
Can Be Used To Comply With Title 24Yes
Bulb (Recommended Type)Integrated LED Module
Minimum Construction Space Required2" x 6"
Manufacturer Warranty3 Years
High Efficiency LuminaireNo
Minimum Recommended Flow0

Dimensions & Weight

Width12.5 in.
Height9.25 in.
Length5.75 in.
Weight-
Housing Dimensions9-1/4" x 10" x 5-3/4"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width17.5 in.
Shipping Height14.25 in.
Shipping Length10.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement0.38 ft³
Dimensional Weight4.01 lbs.
Total of Cubes0.38 ft³
Total of Dimensional Weight4.01 lbs.
