$556.00
Was$559.00Save $3.00

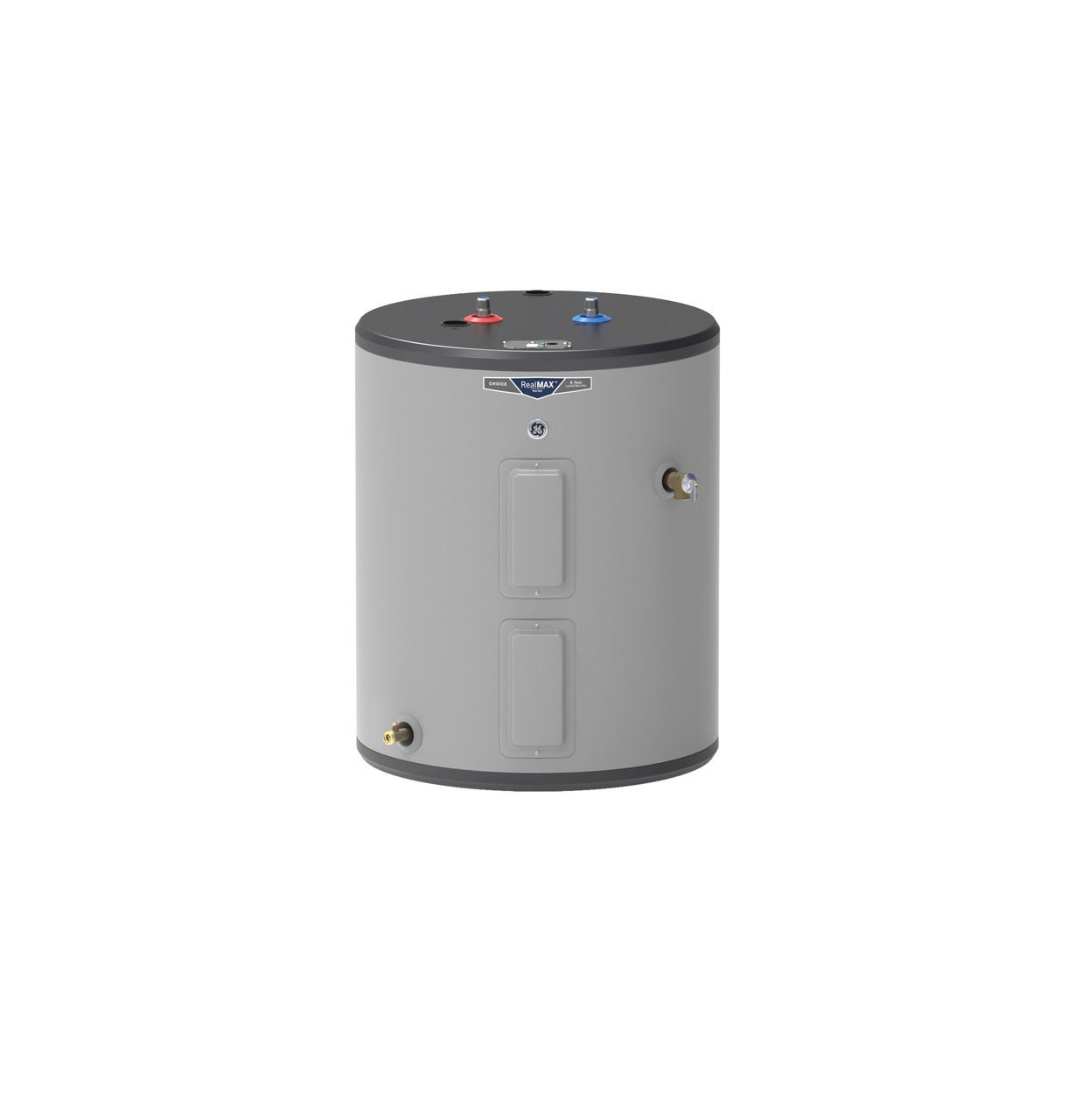

36 Gallon Top Port Lowboy 4500W Electric Water Heater - GE40L08DAT
$556.00
Was$559.00Save $3.00
Color : Gray
$556.00
Key Features
Lowboy
Household Size
4500W Heating Elements

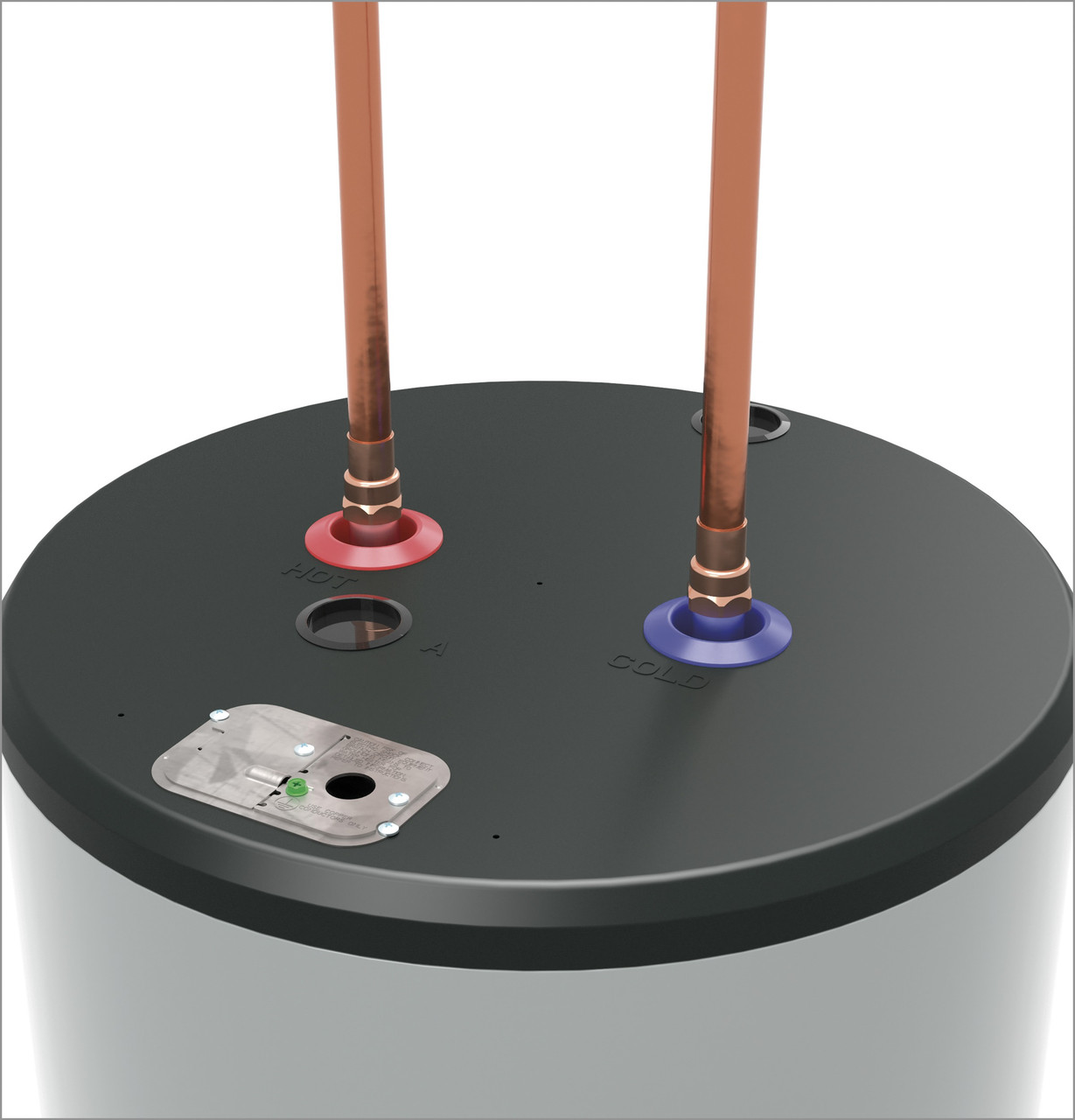

Inlet Tube
Easy Set Up
Anode Rod
Adjustable Thermostat
Brass Drain Valve
Available from Brooklawn Appliance Outlet, serving customers throughout Brooklawn.
Features
Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Household Size
Provide hot water for the whole family of 2 to 4 persons
4500W Heating Elements
Two 4500W heating elements require 25 Amp to operate will increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

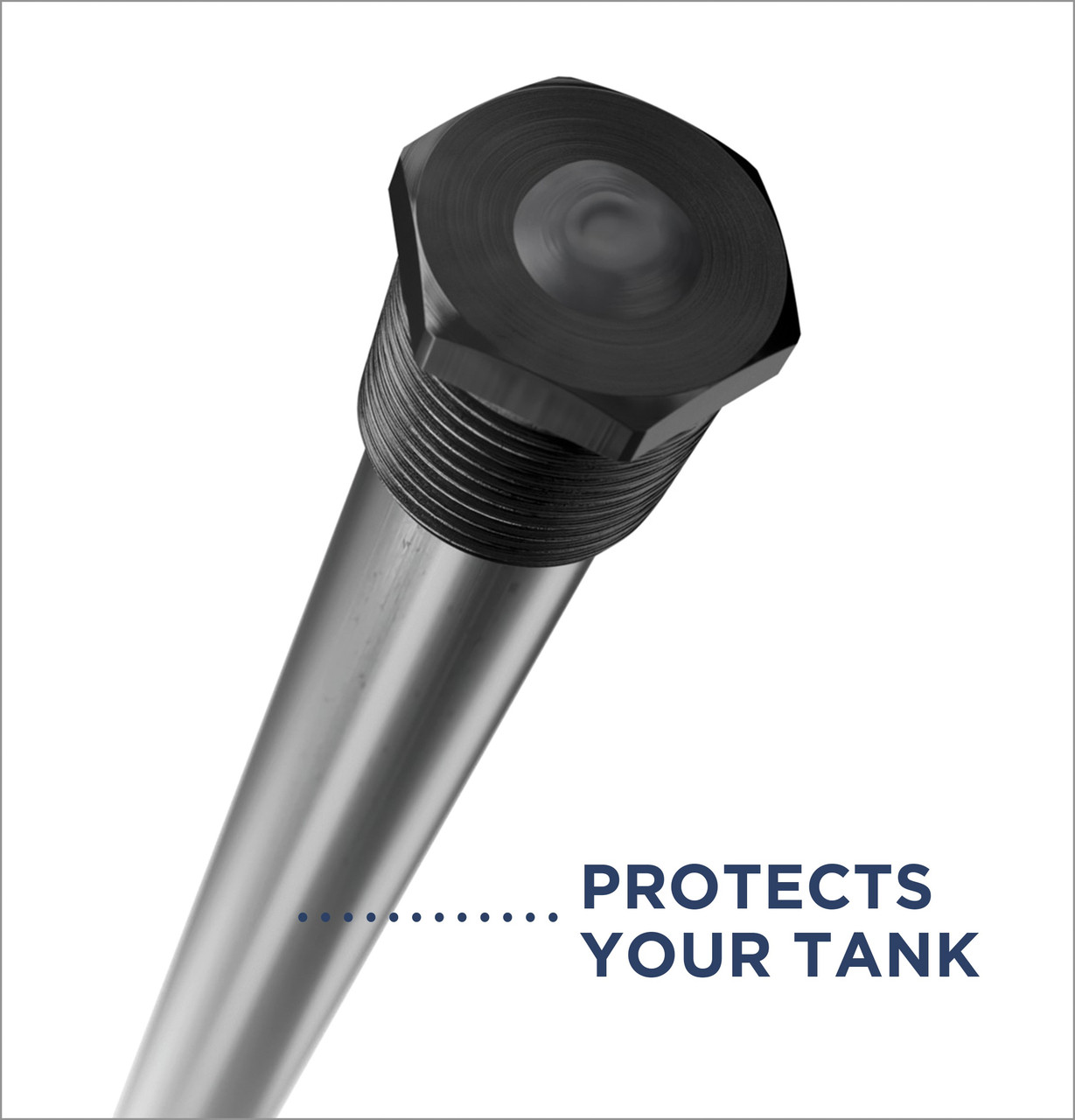

Anode Rod
Durable design offers long-lasting protection against corrosion
Adjustable Thermostat
Change temperature to your desired setting
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Certifications
California Prop 65
Specifications
Other
| Product Diameter | 27 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 27 in. |
| Height | 32.75 in. |
| Length | 27 in. |
| Weight | 135 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 37.75 in. |
| Shipping Length | 32 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.82 ft³ |
| Dimensional Weight | 171.76 lbs. |
| Total of Cubes | 13.82 ft³ |
| Total of Dimensional Weight | 171.76 lbs. |
WEIGHTS & DIMENSIONS
| Overall Width | 27 in |
| Overall Height | 32.75 in |
| Product Height (to top of unit) | 32.75 in |
| Overall Depth | 27 in |
| Product Height (to top of water inlet/outlet connections) | 34.25 in |
| Approximate Shipping Weight | 145 lb |
| Net Weight | 135 lb |
| Product Diameter | 27 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
FEATURES
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Low Boy with Top Port |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 36 |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric 4500W |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
| Drain Valve Type | Brass |
| Rated Capacity | 36.0 gal |
POWER / RATINGS
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 4500/4500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 56 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 3531 |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
CAPACITY
| Unit Capacity | 40 Gallons |
APPEARANCE
| Color Appearance | Gray |
