47 lb. Clear Outdoor Icemaker (Panel Not Included) - BIM68OSGDRIF
Color : Panel-Ready
Key Features
Outdoor Clear Icemaker
Weatherproof design
Built-in capable
Panel-ready door
Factory-reversible door
Sealed back
Fully finished cabinet
100% CFC free
Description
Available from Brooklawn Appliance Outlet, serving customers throughout Brooklawn.
Features
Outdoor Clear Icemaker
15" wide built-in undercounter icemaker produces 47 lbs. of clear gourmet ice cubes
Weatherproof design
Durable construction for safe installation in outdoor kitchens
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

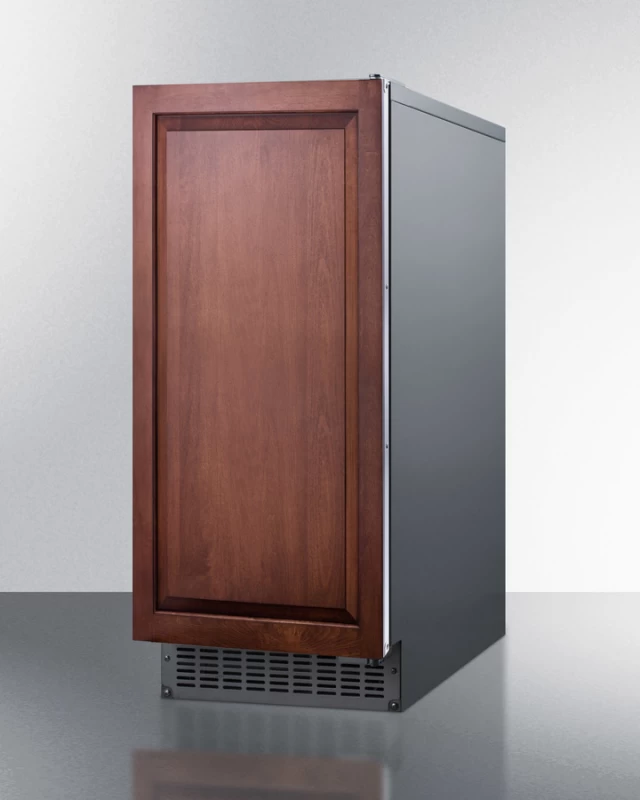

Panel-ready door
Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
Factory-reversible door
Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
Sealed back
Space-saving design with easier cleanability
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Commercially approved
UL-S listed to NSF-12 commercial standards for use in foodservice settings
47 lb. production capacity
Can make up to 47 lbs. in a day cycle, producing 24 cubes in a 30 minute span
Stainless steel wrapped exterior
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

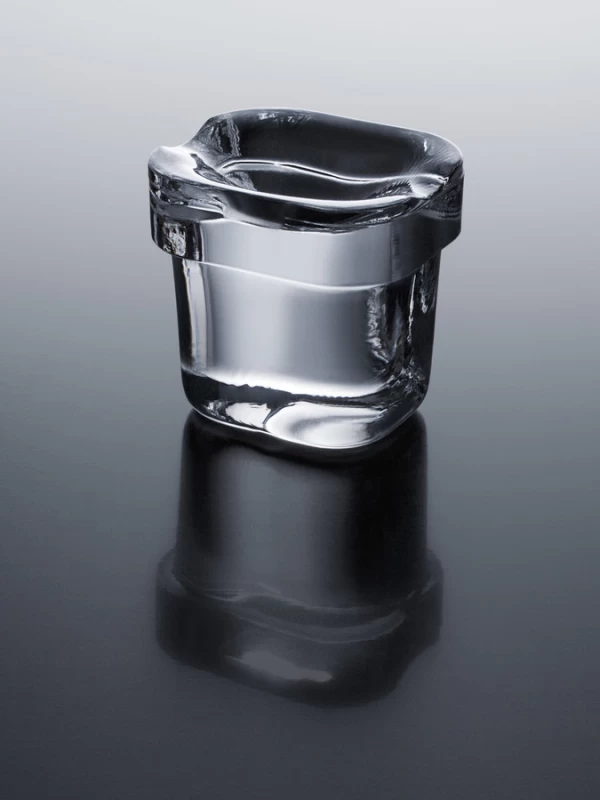

Clear ice cube production
Gourmet style rounded dice-style ice cubes
Frost-free operation
No-frost operation for minimum user maintenance
Gravity drain setup
Requires connection to gravity drain
Standard water hookup
Operates with a standard 1/4” OD water supply line
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 14.88 in. |
| Height | 33.5 in. |
| Length | 22.63 in. |
| Weight | 105 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.53 ft³ |
| Dimensional Weight | 81.16 lbs. |
| Total of Cubes | 6.53 ft³ |
| Total of Dimensional Weight | 81.16 lbs. |
Overview Icemaker
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with door at 90° | 37.25" (95 cm) |
| Capacity | 0.98 cu.ft. (28 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | UL-S |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101061801 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Daily Ice Production | 47.0 lbs. (21 kg) |
| Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Ice Shape | Top hat |
| Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 3.5 oz. |
| High Side PSI | 127.0 |
| Low Side PSI | 40.0 |
| Interior Height | 12.75" (32 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 9.25" (23 cm) |
| Level Legs | 4 |
